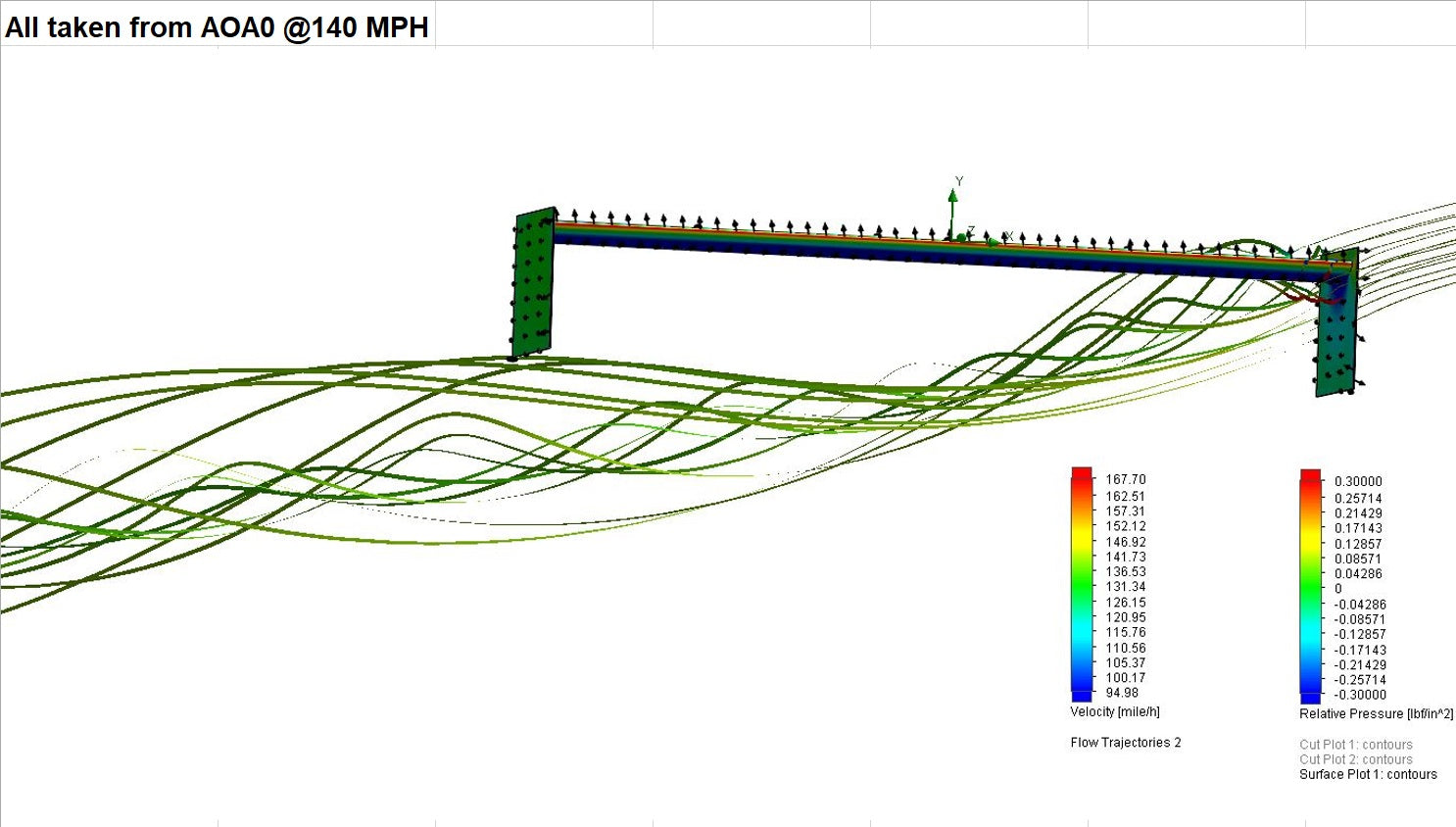

• A computer-generated image displaying fluid dynamics results for flow trajectories at 140 MPH is shown. The flow lines are in green, with a color legend for velocity (in m/s) on the left and relative pressure on the right. The cross-section of the Camaro Wang 5th Gen 71" by 9livesracing depicts downforce adjustments of its aluminum wings.
  • Two sleek, modern Camaro Wang 5th Gen 71" shelves from 9livesracing feature a minimalist design with black vertical supports and white and dark grey horizontal surfaces. The supports display a small, white logo of a person. Inspired by the precision of aluminum wings on the Big Wáng GT3, these shelves cast elegant shadows on a white background.
  • A spreadsheet displaying the data and graphs for "Down Force vs Velocity" and "Drag vs Velocity" related to different angles of attack (AOA) for the Camaro Wang 5th Gen 71" by 9livesracing. The graphs plot air velocity (MPH) against downforce adjustments, showcasing the aluminum wings with multiple lines representing various AOAs (5, 10, 15 degrees).
  • A close-up image of the handle of a black Camaro Wang 5th Gen 71" pocket knife by 9livesracing, partially sheathed in its black casing. The sheath features a small logo at the bottom depicting a simplified figure with outstretched arms, evoking the precision seen in downforce adjustments. The background is plain white.
  • Two sleek, modern Camaro Wang 5th Gen 71" modular wall shelves by 9livesracing, featuring black end caps and positioned at varying heights. The shelves, reminiscent of aluminum wings, are suspended against a white background, showcasing their minimalist design and the small human figure logo on the black end caps.
  • A sleek, matte black car wing is shown in the image. The text "Camaro Wang 5th Gen 71”" is on the bottom left corner, accompanied by "The lightest aluminum wing on the market with adjustable downforce - 9livesracing.

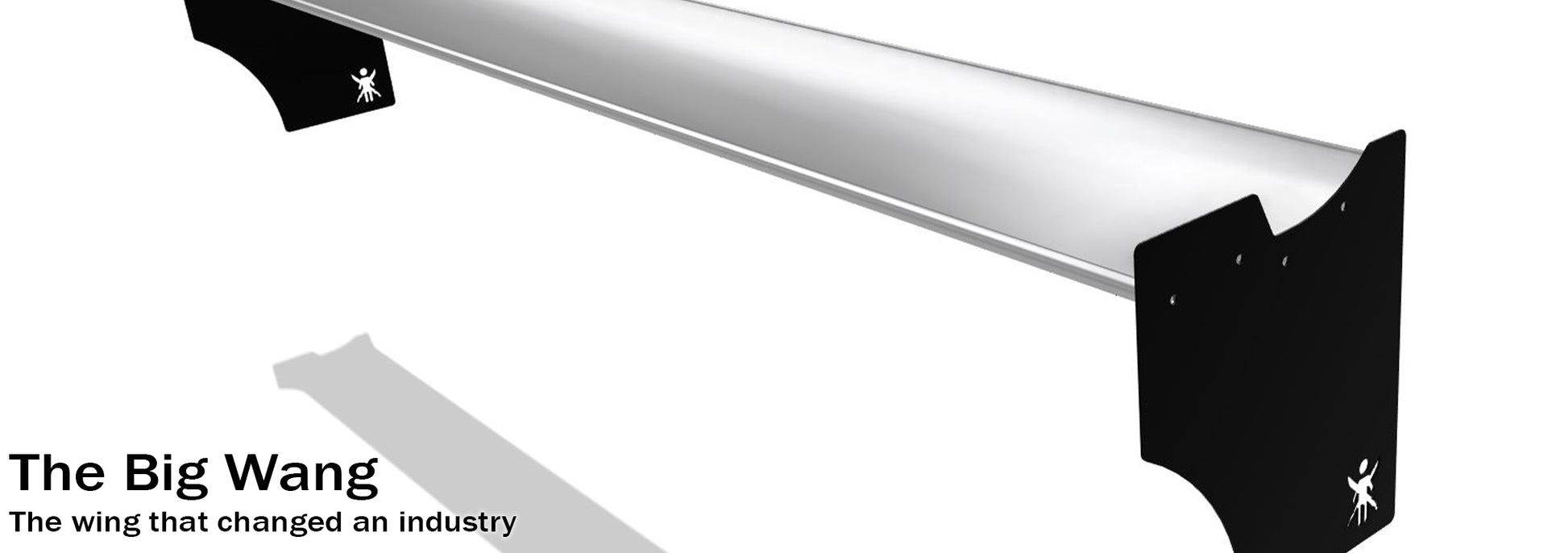

  • A large rear car wing named "Camaro Wang 5th Gen 71"" with black endplates and a metallic aluminum finish. The text "9livesracing - The wing that changed an industry" is written at the bottom left of the image. There is also a small logo at the bottom of each endplate, indicating downforce adjustments.

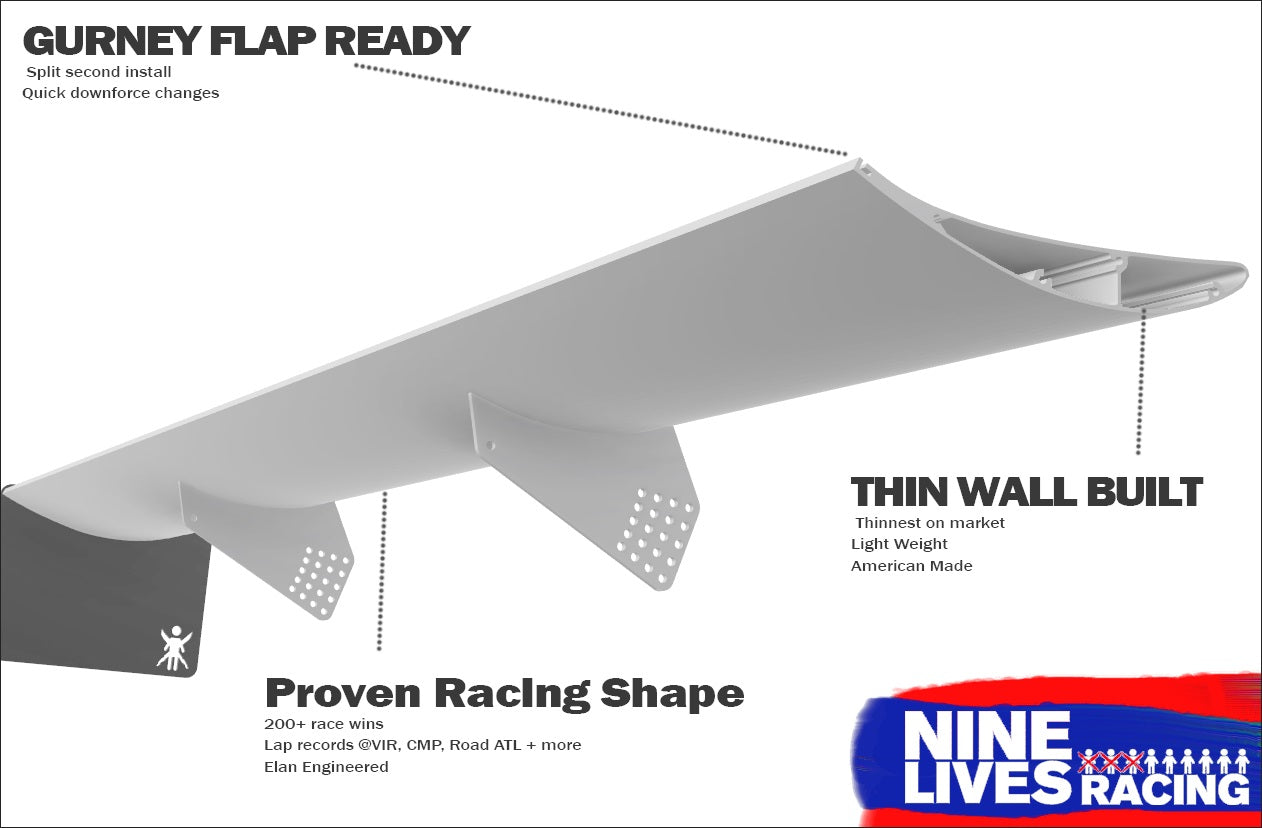

  • Image of a racing car wing with a Gurney flap attachment. The Camaro Wang 5th Gen 71" wing by 9livesracing is described as "Gurney Flap Ready," "Thin Wall Built," and features a "Proven Racing Shape" for optimal aerodynamics. With Big Wáng GT3 aluminum wings, make precise downforce adjustments for peak performance.

Camaro Wang 5th Gen 71"

Regular price

$1,114.03
Wáng Material
Details

Tested and ready!

Get that big wing GT3 performance! Big Wáng is here! These Airfoils can produce incredible levels of downforce without killing top speed. Exactly what racers are after. Extruded aluminum wings are developed, patented, and built for a prototype project. Nine Lives Racing Takes the raw material and makes them readily available to the public as a working part. Best wing in class. 15.2:1 Lift to drag ratio, nothing else comes close. A built-in gurney flap relief for downforce adjustments in seconds.
  • Wing Set at roof height
  • Light Aluminum construction.
  • 0.199 lbs per inch
  • Gurney flap ready
  • Up to 15.2:1 Lift Drag ratio*
  • low drag = more top speed!
  • American made
  • Built to meet rules set by SCCA, NASA, GTA, and Gridlife.
  • Track Tested
What's included.
  • Wing sized to your car 71"
  • NLR “basic” End plates 10"x8"
  • Wing mounts- welded
  • Stainless Steel or nickel-plated hardware

Add on
Upgrade End plates to MEGA end plates
  • 12x10.75 huge endplates
  • NASA legal
  • AOA ajustement.
Upgrade to CFD V2 end plates.
  • Shaped in the world of CFD built for the Big Wang.
  • You’ll find bigger endplates you won’t find better endplates
  • Same downforce as the Megas with less drag.



Warranty/ Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wang skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wangs and Mega Wings are covered by Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

* Open air testing numbers available at https://9livesracing.com/cfd-testing
