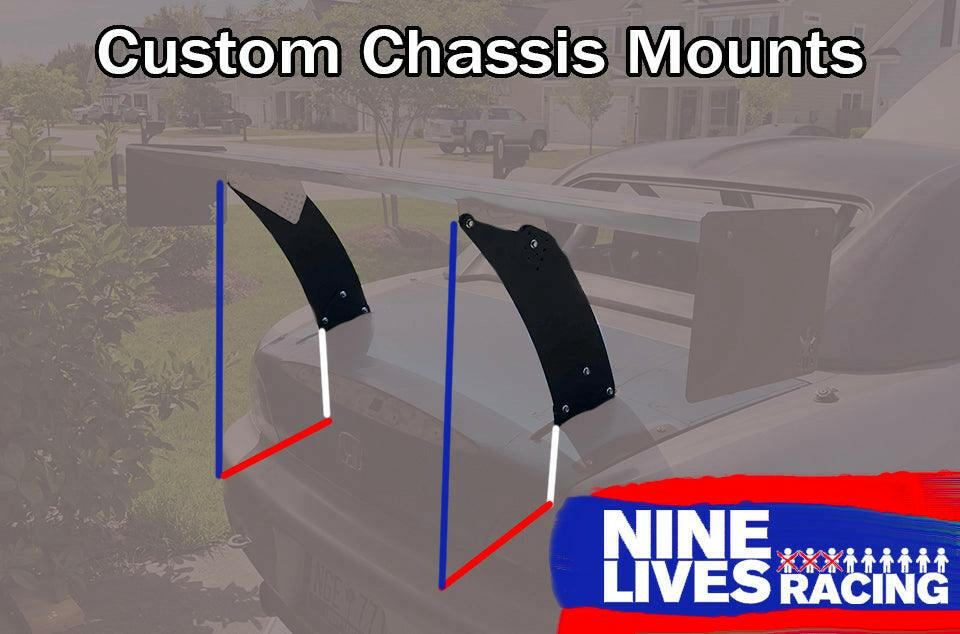

• A car is equipped with a large rear spoiler featuring Custom Chassis Mount kits, designed for an optimal wing Angle Of Attack (AOA). The text "Custom Chassis Mounts" is displayed at the top of the image. In the bottom right corner, there is a logo featuring the text "9livesracing" with a graphic of nine human figures above it.
  • A red and black race car with the number 942 is speeding on a track, its 9livesracing Custom Chassis Mount kits ensuring a consistent drive. The car features various sponsor logos, including a prominent "Sahlen's" logo on the door. The background is blurred, indicating motion. Red, blue, and yellow markings are edited on the image.

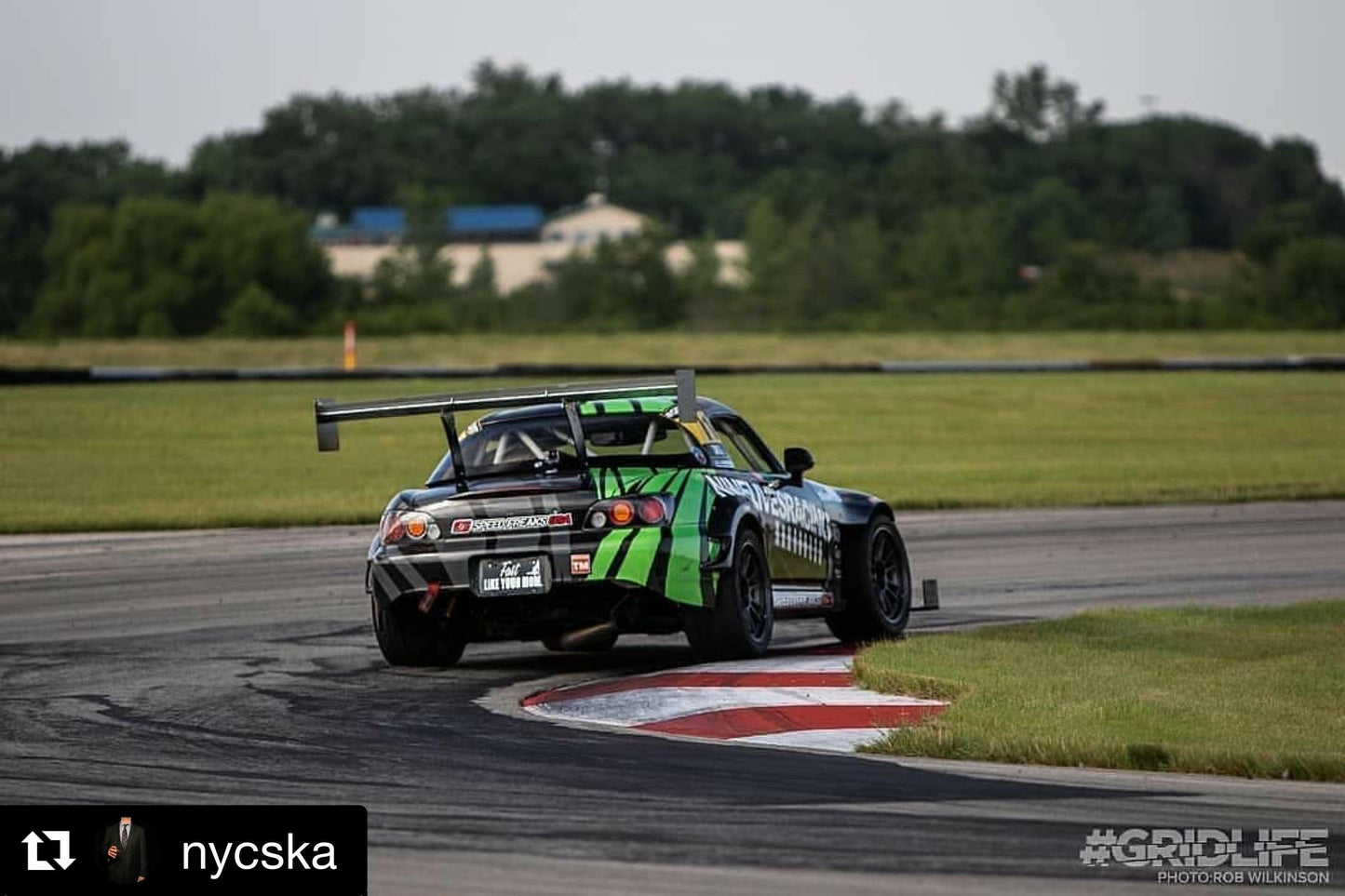

  • A race car equipped with 9livesracing's Custom Chassis Mount kits, sporting a striking black and green paint job, takes a turn on a racetrack. The impressive chassis mount wing is showcased at an optimal angle of attack (AOA), enhancing the car’s performance. In the background, green grass, trees, and distant buildings can be seen. Photo credit goes to GRIDLIFE, and it was reposted by @nycska.

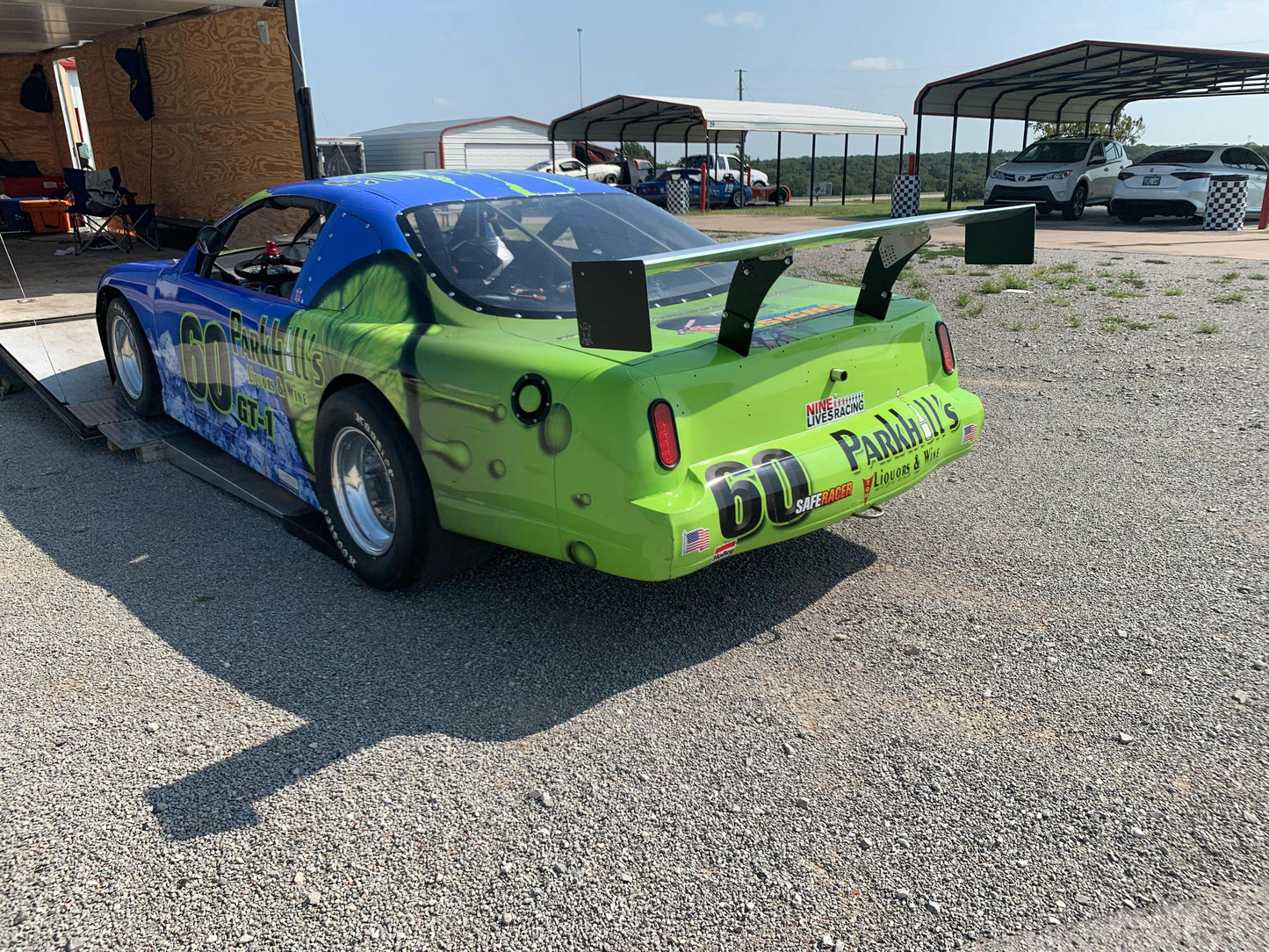

  • A green and blue racing car featuring a prominent rear wing is parked on a gravel area next to a trailer. The car, numbered "60" with "Parra's" on the back, showcases an optimized Angle Of Attack (AOA) thanks to 9livesracing's Custom Chassis Mount kits. Several other structures and vehicles are visible in the background.

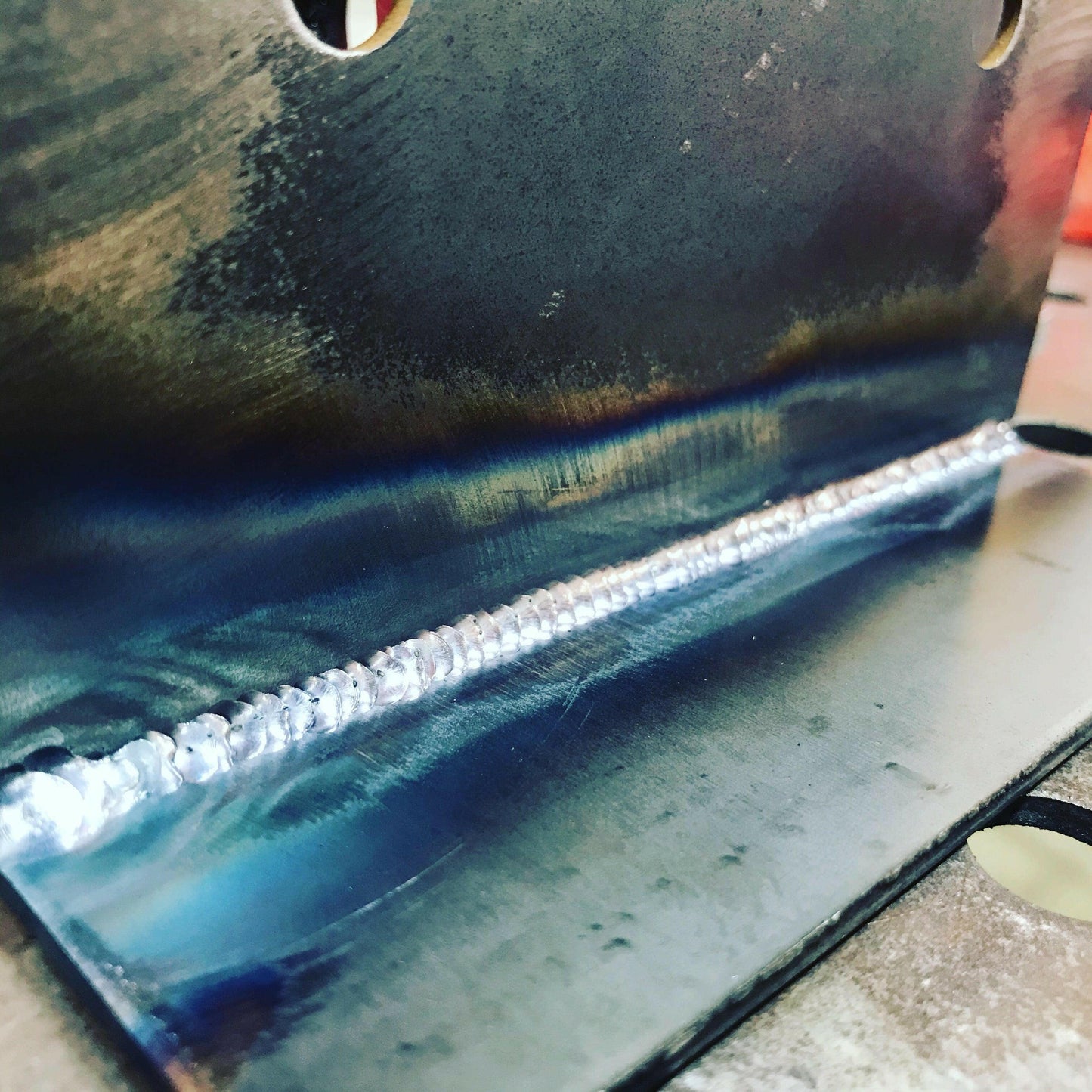

  • Close-up of a metal piece with a smooth, evenly spaced weld seam in the middle. The surface of the Custom Chassis Mount kit from 9livesracing shows slight discoloration from the heat of welding, varying from blue to brown tones. The background is slightly blurred, highlighting the precision and consistent drive in achieving such craftsmanship.

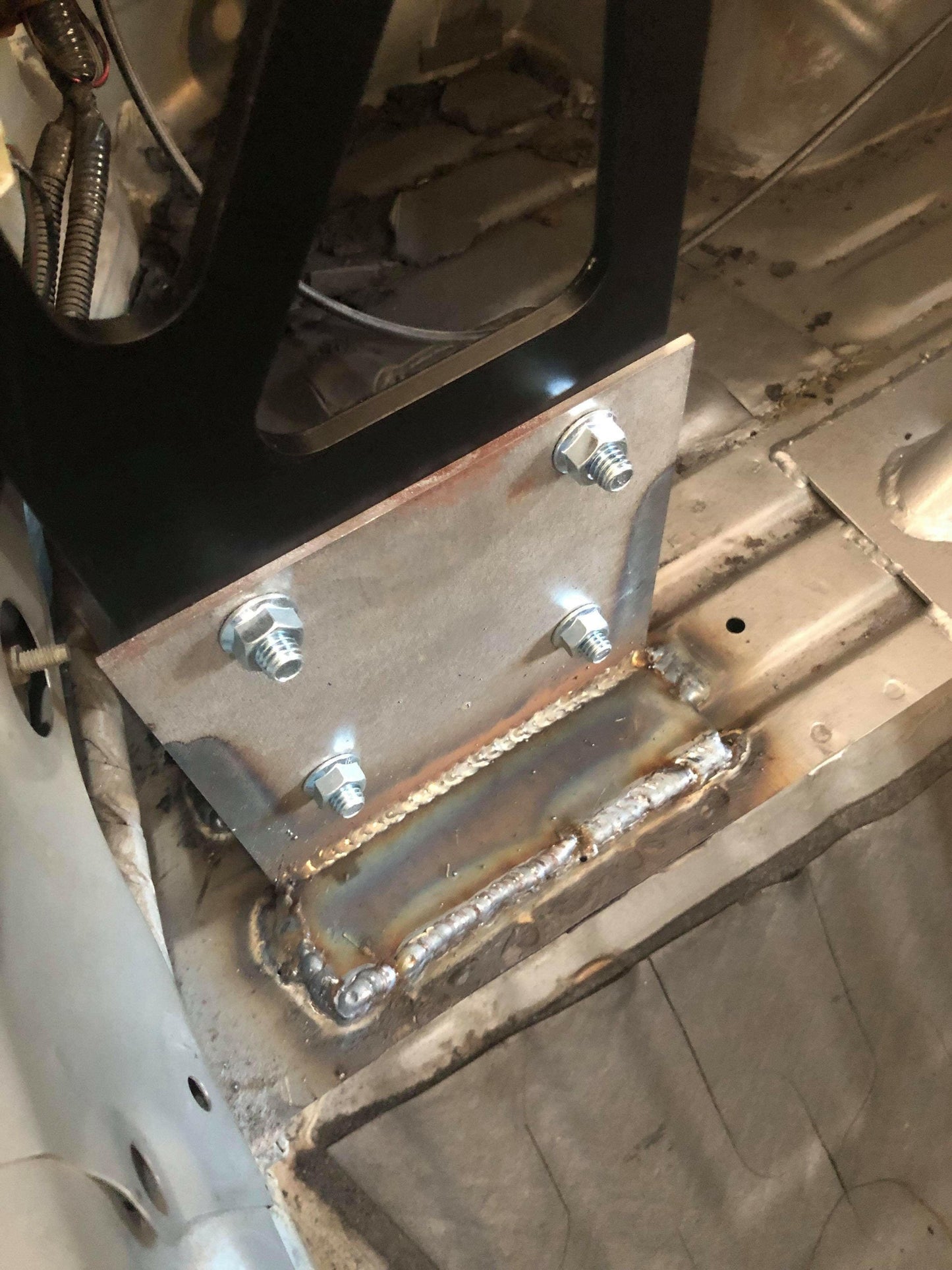

  • A close-up view of a 9livesracing Custom Chassis Mount kit bolted and welded onto a vehicle's bare floor. The mount is secured with three bolts and features a sturdy weld along its base, seamlessly joining it to the vehicle's chassis. Electrical wires and the vehicle's interior are partially visible.

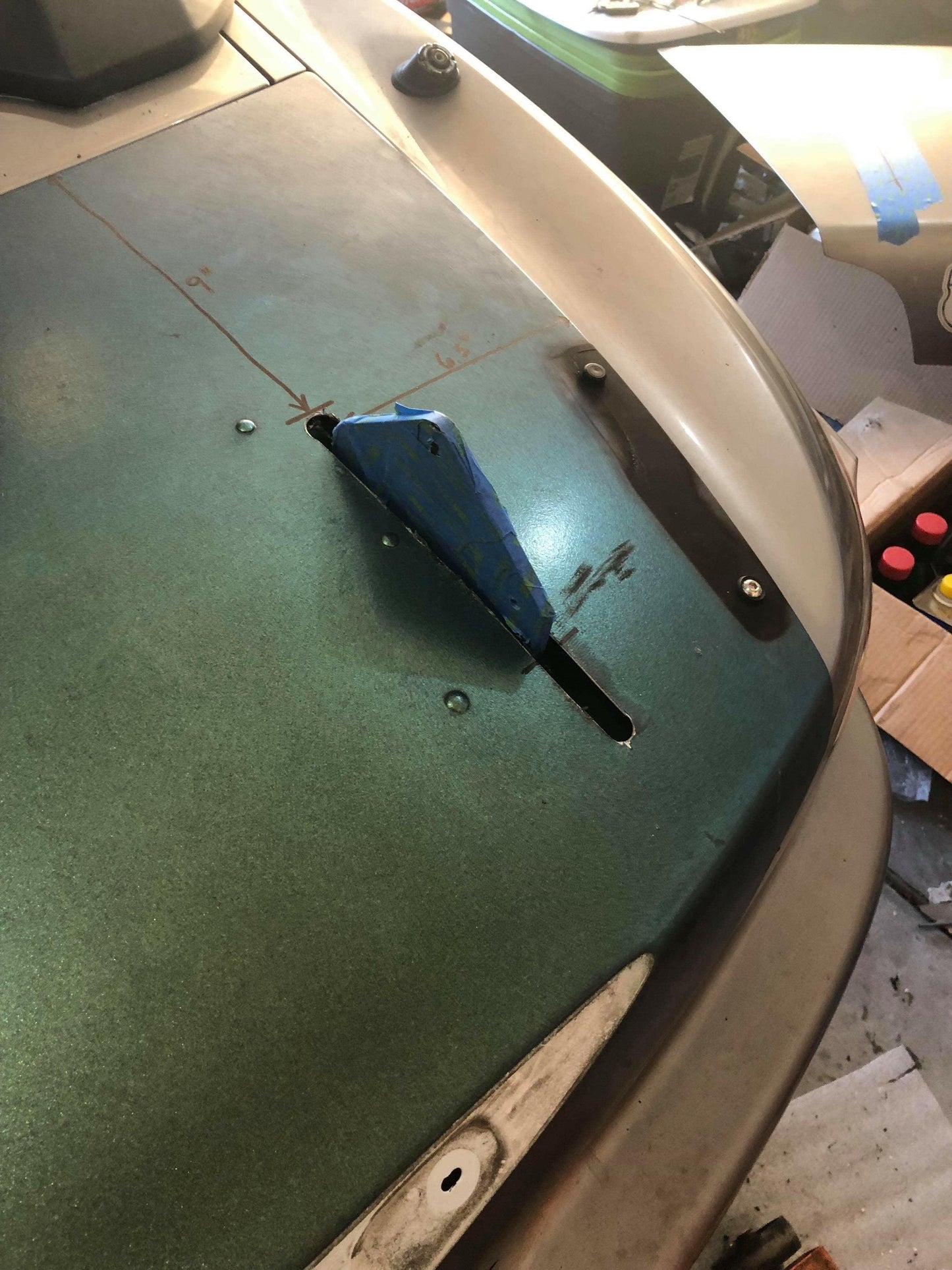

  • A close-up of a boat's stern reveals a Custom Chassis Mount kit from 9livesracing installed on a green and white surface, featuring an evident wing Angle Of Attack (AOA) in its design. Various tools and materials scattered in the background suggest it's being worked on in a workshop. This setup ensures consistent drive for optimum performance.

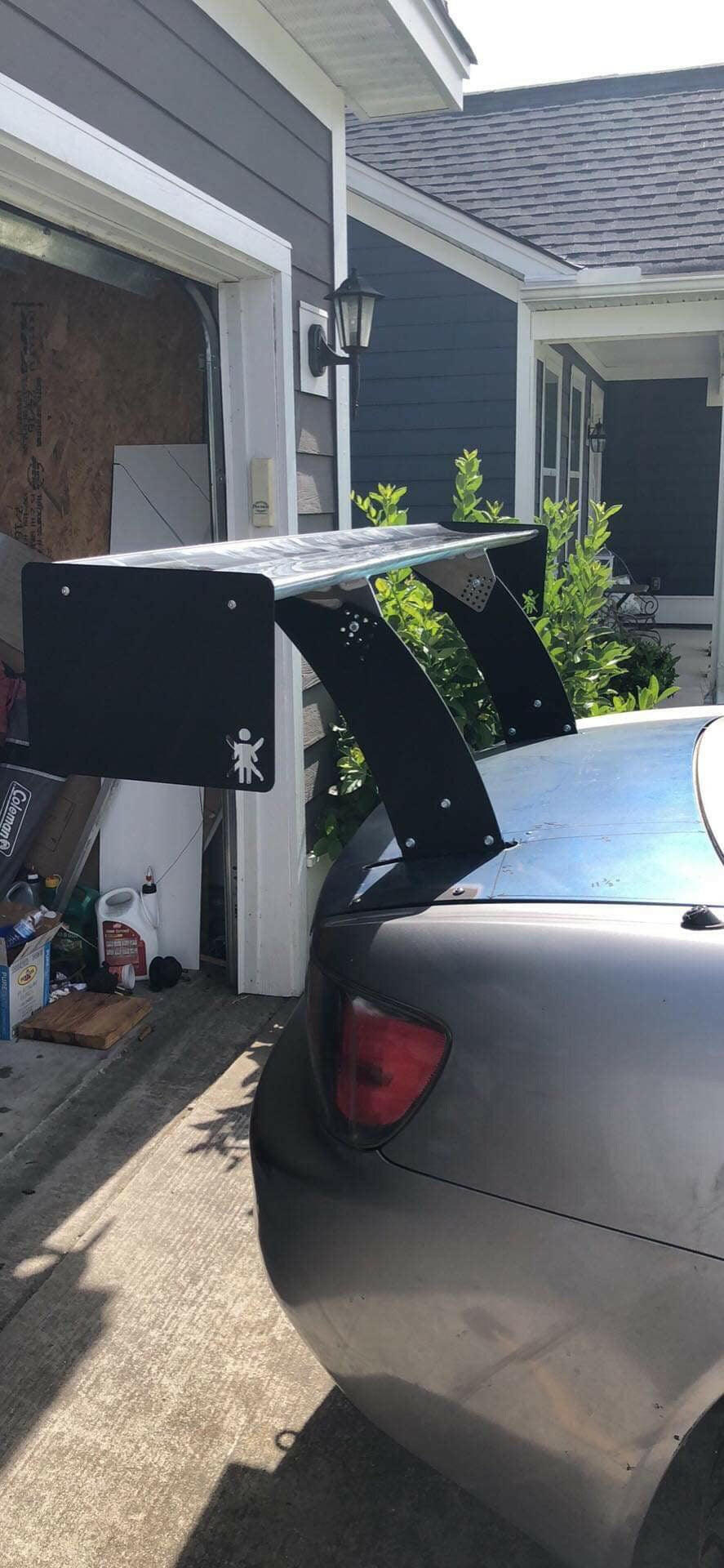

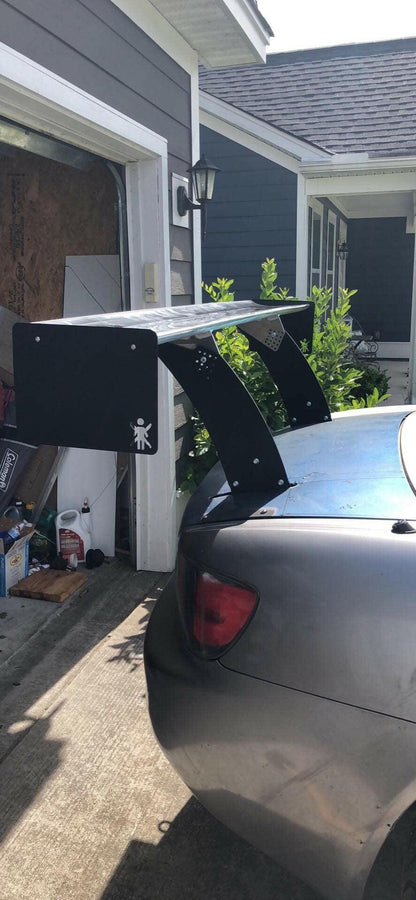

  • A close-up of a car equipped with 9livesracing's Custom Chassis Mount kits, showcasing a large spoiler with an aggressive wing angle of attack (AOA) attached to its trunk, is parked in front of a house with gray siding. The garage door is open, revealing various items inside. The house has a small outdoor lantern on the wall and greenery next to the driveway.

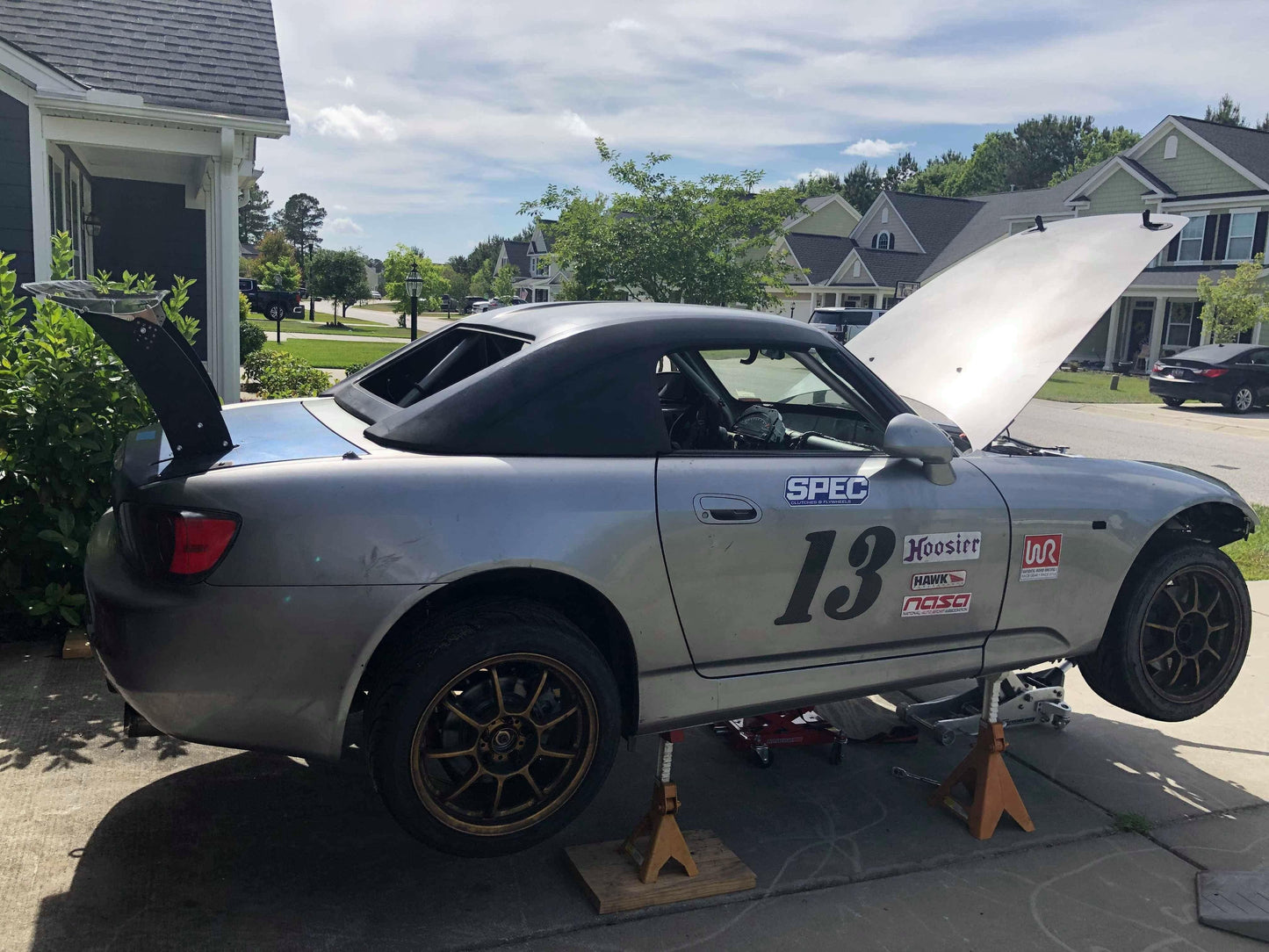

  • A silver race car, proudly displaying the number 13 along with various sponsor decals, sits elevated on jack stands in a suburban driveway. The car's hood and trunk are open, revealing the intricate 9livesracing Custom Chassis Mount kits. Its right front wheel is removed, with modern houses and lush greenery framing the background.

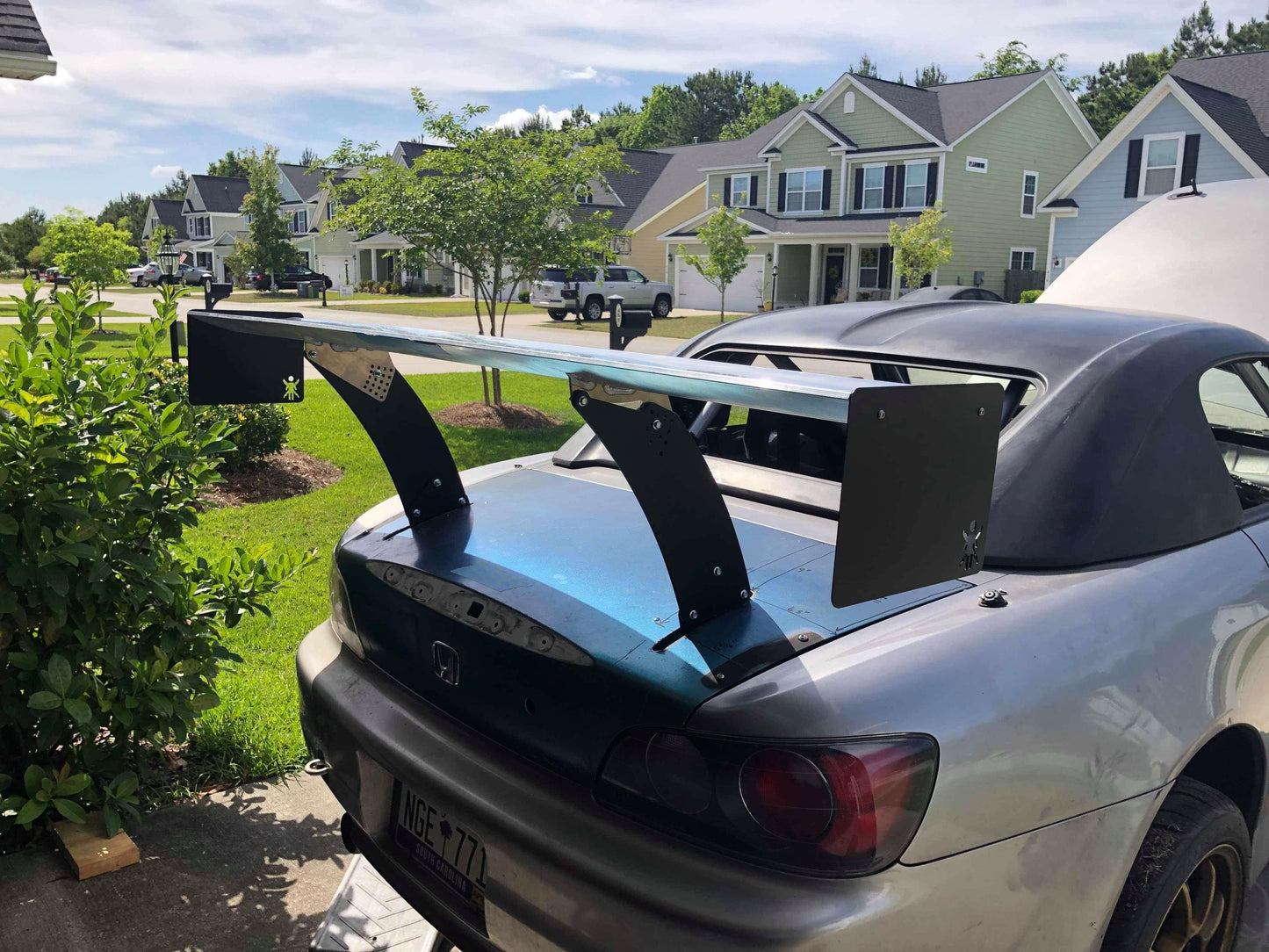

  • A silver convertible car is parked in a suburban neighborhood driveway, featuring an oversized rear wing spoiler equipped with 9livesracing Custom Chassis Mount kits. Houses, a lawn, trees, and parked cars are visible in the background under a partly cloudy sky.

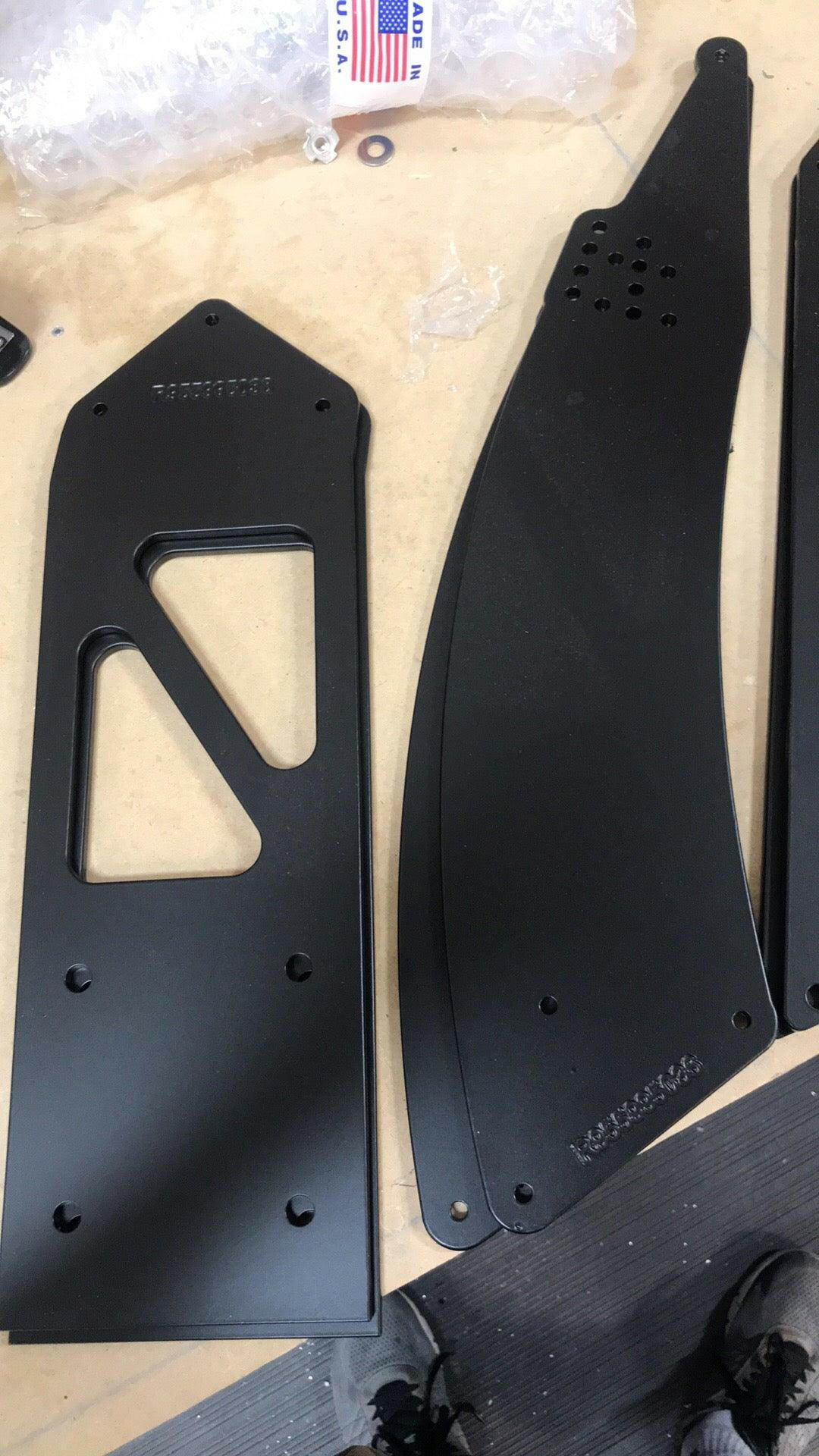

  • A close-up view of black components made from metal or plastic, featuring both angular and curved shapes that resemble machine parts. The left component, which has cut-out triangular sections, is labeled "Tactique." The right component appears to be part of the Custom Chassis Mount kits from 9livesracing and includes several small holes along with curves at one end.
1 11

9livesracing

Custom Chassis Mount kits

Custom Chassis Mount kits

$560.40 USD
$560.40 USD
Sale Sold out
Shipping calculated at checkout.

Custom chassis mounts.

The benefit of a chassis mount is that when the wind hits your wing it will make drag. On a trunk this drag will compress the rubber and other things. This movement will change your wing's Angle Of Attack (AOA). With a chassis mount, your wing will stay rock solid. Giving you a more consistent drive. Remember consistency wins championships.

How to order.

Step 1
Find a place you can attach a 6" x 6" plate. Mark in that location as all measurements will be taken from this point.

Step 2

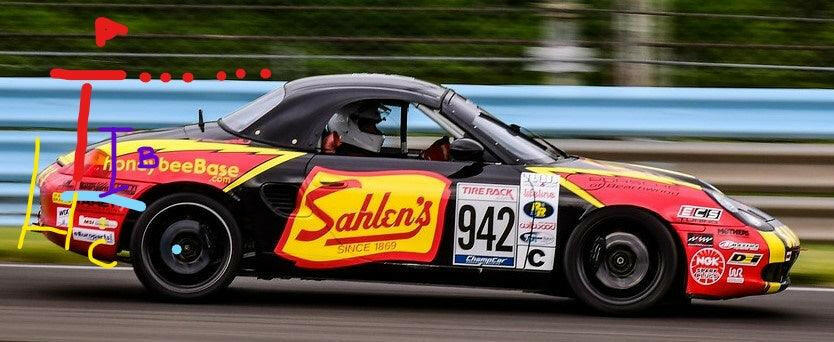

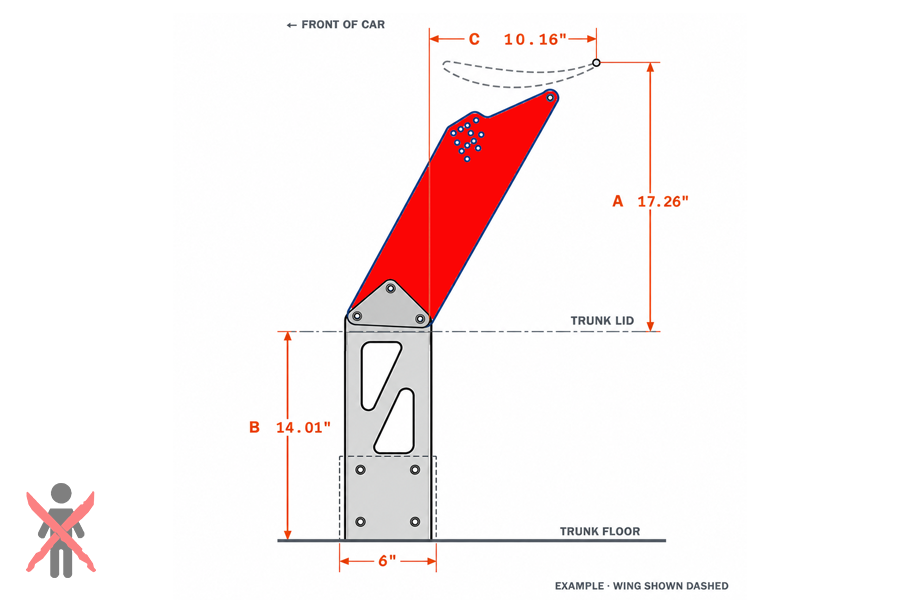

Measure

  • A- From your mark to the desired height of the wing. (The roof is best)
  • B- From your mark to the trunk lid. (This can be a bit off as we allow for that)
  • C- From your mark, how far back would you like the wing? Typically 8" is a good default, although your particular class rules might say otherwise.

Step 3
Give us a few days, we will produce a PDF and email it to you. At this time you can print it out and test fit. Once you're happy give us the "OK" and we will start producing your unique kit.

Warranty/ Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wang skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wangs and Mega Wings are covered by the Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.
