Build your splitter

Build a custom splitter from five measurements, or pick one of ours and add stick-out. Your price updates as you go.

Splitter

Custom is cut to the measurements you enter below.

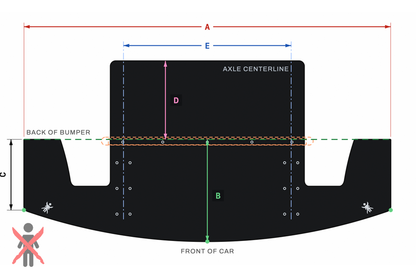

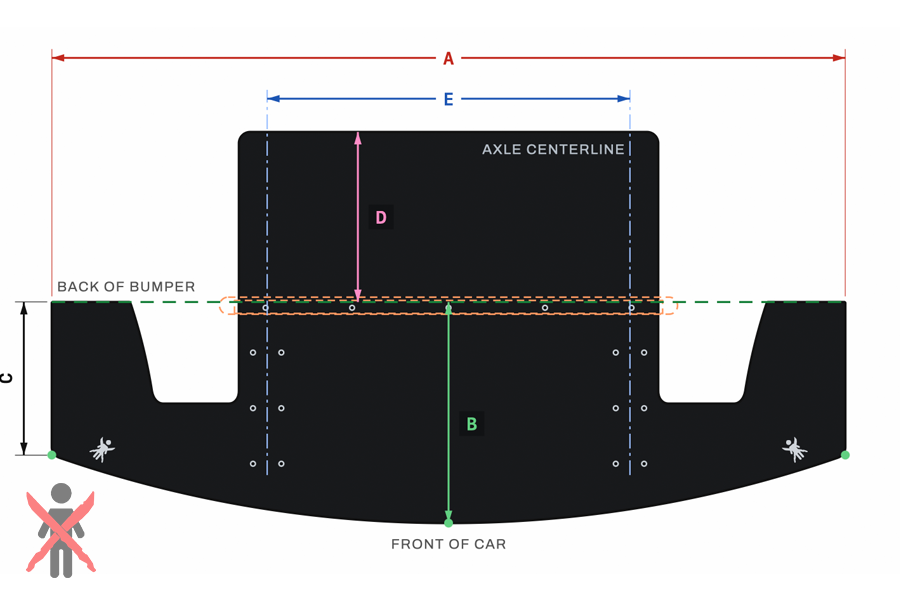

A
in
The red line. Side to side across the bumper at its widest.
in
How much wider than the bumper you want the splitter, in total. We recommend 2 in.
B
in
The green line. From the back of the bumper forward to the front of the bumper, on the center of the car. The back of the bumper is the line every measurement starts from.
in
C
in
The black line. From the back of the bumper straight forward along the side, to where the front edge starts to curve.
D
in
The pink line. From the back of the bumper back to the center of the front axle. This is the tail length.
E
in
The blue line. Center to center between the two places the splitter mounts to the car, usually the frame rails. We put the center of our quick disconnect holes here and keep an extra inch clear outside them for the splitter ramps. It also sets how wide the tail is, so we need it even without the mount holes.
Rocket Nose V3 Raw Edge: we don't seal it, and it ships fastest.

3D view. Drag to turn it.

Price

Double check your measurements. We cut exactly what you enter here.

  • Graphic: "9LIVESRACING" with the word "LIVES" directly below "9." Beneath the word "LIVES," there are nine stick figures, three of which are crossed out with red Xs. The design is as sleek and resilient as a powder coat finish, underscoring meticulous craftsmanship and robustness.
1 2

9livesracing

Custom Splitter Kits

Custom Splitter Kits

material

Send us a template, we send you a splitter.

You can quickly and easily make a template by tracing the front edge of the bumper on butcher paper, packing paper, sign board, or any other appropriately sized material you have on hand. Draw out the back to match how far you'd like the splitter to extend making sure to account for the wheels.

Double check your drawing. Exactly what you draw is what you will receive.

Warranty/ Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wang skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wangs and Mega Wings are covered by the Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

*Open air testing numbers available at https://9livesracing.com/cfd-testing
