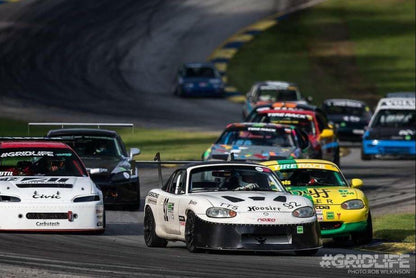

  • Several race cars rounding a corner on a racetrack, featuring an NB Miata fitted with the 9livesracing Miata Medium Downforce Kit '90-05 NA/NB in the forefront, closely followed by other brightly colored cars. Trees and a curving track are visible in the background. The image has the hashtag #GRIDLIFE and includes the photographer's name.
  • A grayscale image showing a curved, rectangular cutout in the center of a larger curved shape, reminiscent of the aerodynamic design elements you might find in the Miata Medium Downforce Kit '90-05 NA/NB by 9livesracing.
  • A Miata Medium Downforce Kit '90-05 NA/NB by 9livesracing on a gray surface, featuring several flat metal pieces with intricate cutouts, along with a pile of screws, nuts, and bolts, ready for assembly. The design includes a larger flat piece with a stylized human figure cutout reminiscent of an aerodynamic kit for an NB Miata.
  • A black and silver car spoiler with angular supports and rectangular endplates bearing the acronym "NLR." The Miata Medium Downforce Kit '90-05 NA/NB by 9livesracing features a sleek, aerodynamic design appropriate for high-performance vehicles like the NB Miata.

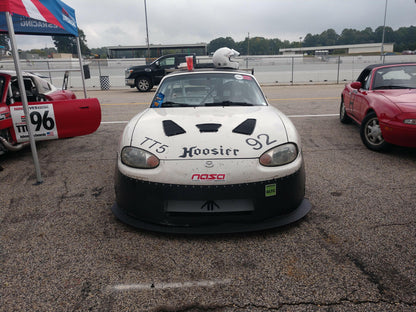

  • A racing car featuring a sleek white and black design and the number 92 alongside "Hoosier" on the hood is parked on a race track, fitted with the Miata Medium Downforce Kit '90-05 NA/NB from 9livesracing. The driver’s side door displays the number 96, and there is a helmet resting atop the car while other race cars are parked nearby.
  • A graphic illustrating the assembly progress of a Miata Medium Downforce Kit '90-05 NA/NB for an NB Miata. The components are arranged on a flat surface: with a large curved piece to the left and two smaller pieces to the right. The text "Splitter Progress" is displayed at the top, and the 9livesracing logo is featured at the bottom.

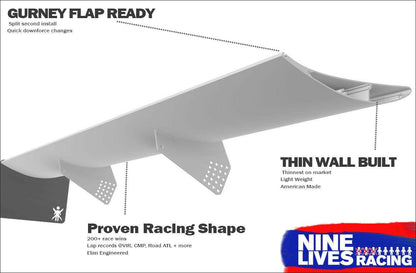

  • A technical illustration of the Miata Medium Downforce Kit '90-05 NA/NB designed by 9livesracing. The aerodynamic kit highlights features such as "Gurney Flap Ready," "Thin Wall Built," and "Proven Racing Shape." The bottom right corner shows the 9livesracing logo with a red and blue banner.

Miata Medium Downforce Kit '90-05 NA/NB

Regular price

$953.90
Details
Increase downforce by +300%



Nine Lives medium down-force kit for NB Miata. Are you looking to win? Well good your in the right place. An all-in-one aerodynamic kit, just bolt it on and know a team of motorsports engineers has set up your personal car. A package that has seen 3 seconds a lap improvement on cars with only a 100 hp.  All of this for less than a traditional carbon wing.

  • Stock powered cars (100hp) have dropped 3 seconds a lap.

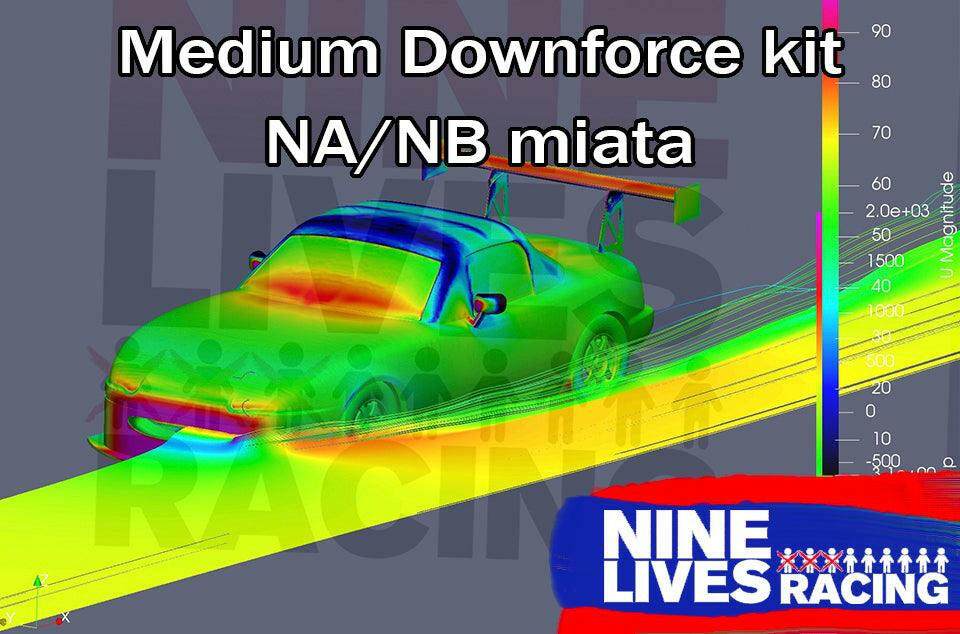

  • Fully CFD verified
  • Weight  and Aero loads in perfect balance
  • Minimum drag
  • Comes with set up notes from Morlind Engineering.
  • Upgrade-able to high downforce kit.
 Includes

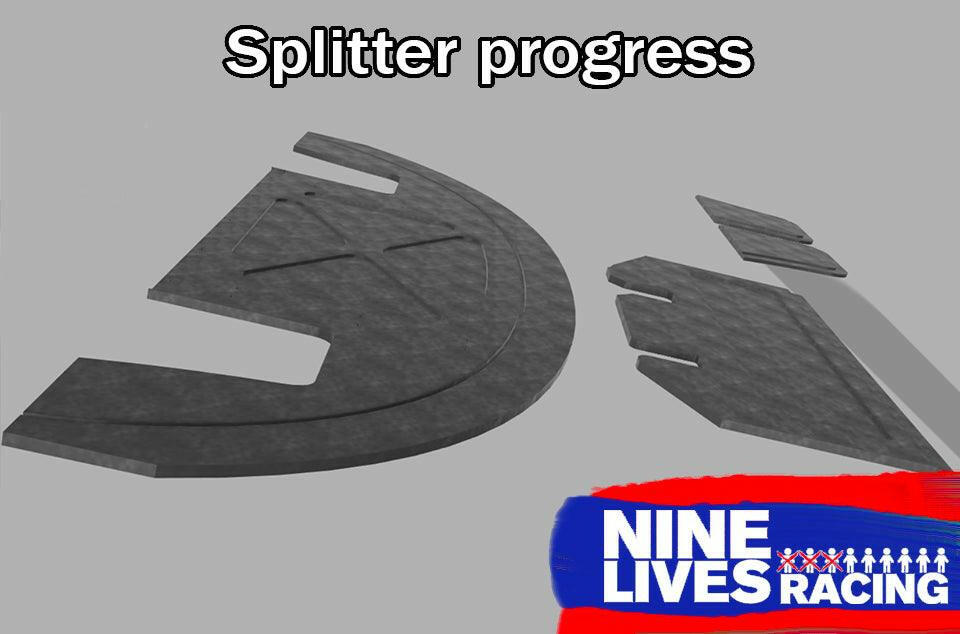

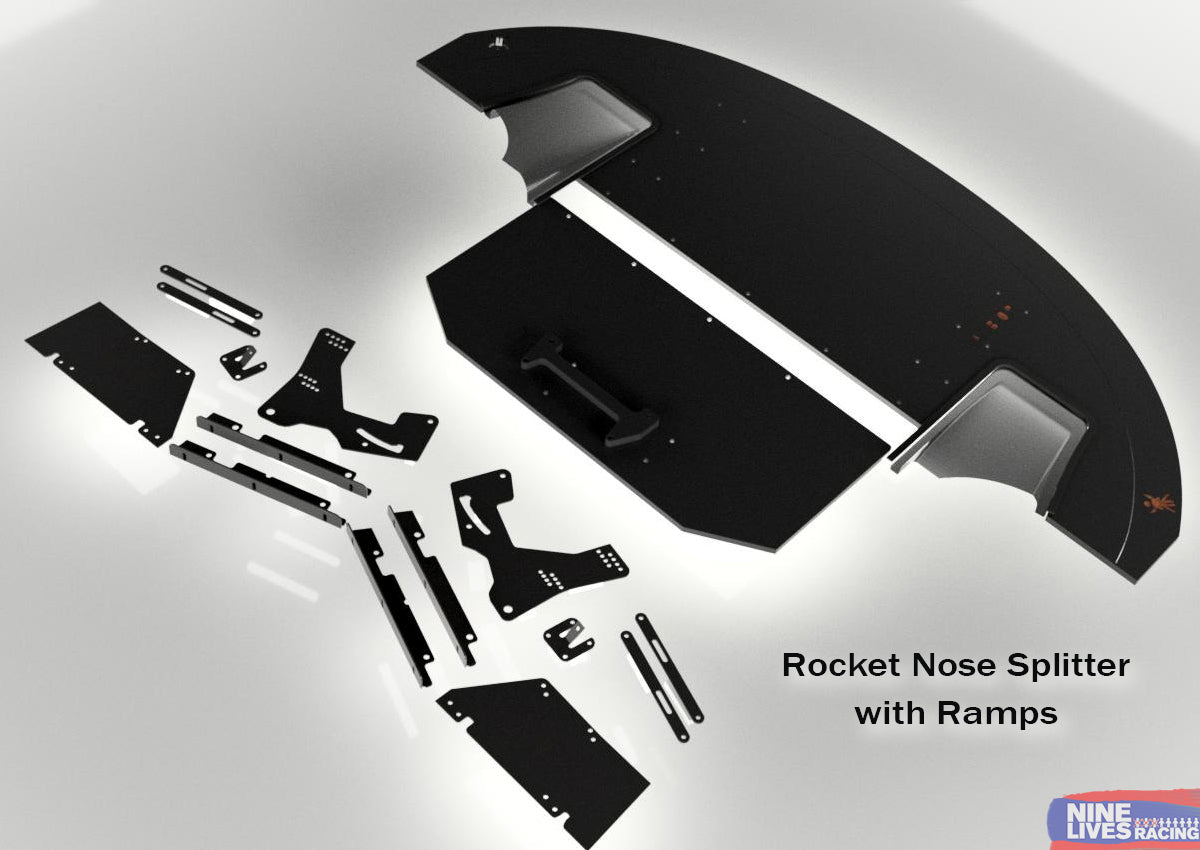

  • Engineered sized splitter
  • Damn Dam air-dam

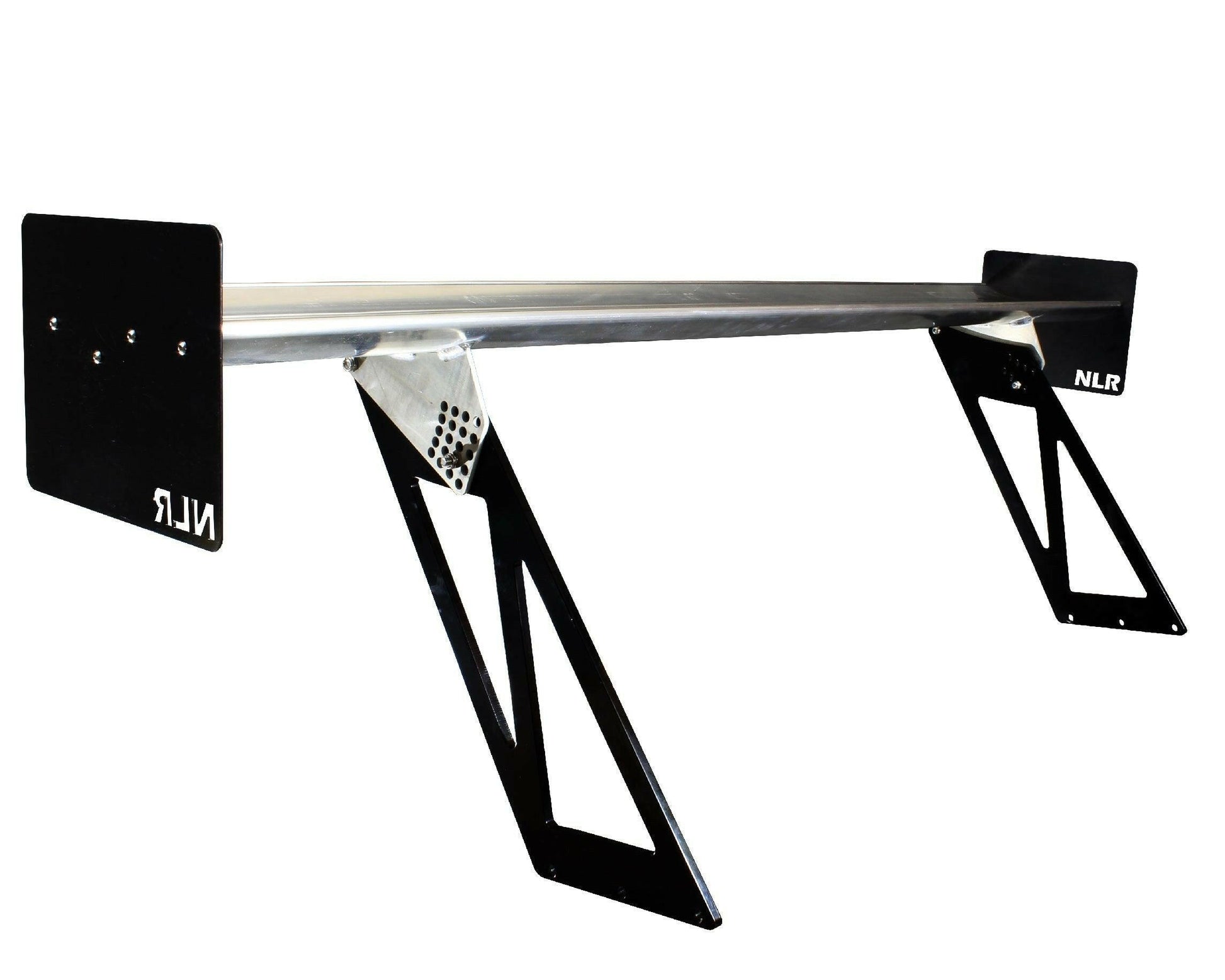

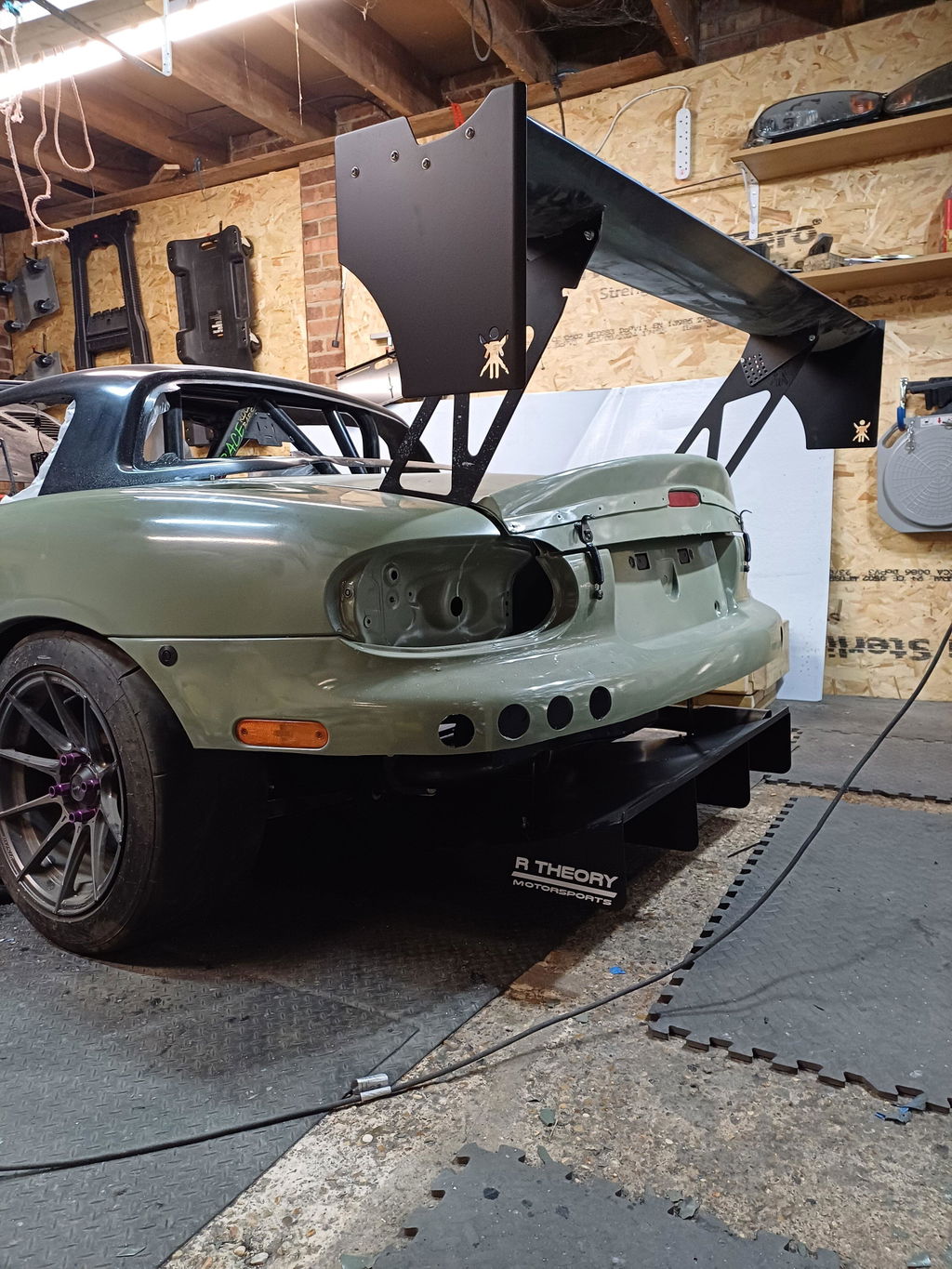

  • 64" Miata Wáng kit
  • Sturdy Boii Splitter mounts and radiator ducting

Upgrade / Add-ons Splitter material.

  • Poly infused birch, a cost-effective splitter that will with-stand the elements.
  • Tegris, just like a very popular racing series that only turns left uses. Tegris is a woven plastic splitter that makes very little drag when it slides on the ground. It also resembles a carbon fiber look with 1/2 the price.
  • Carbon, you're mad if you want this. Yes it's light, but it's expensive as all get out. You really wanna smash this thing?







This damn dam for 1990- 2005 Mazda Miatas

Finally an affordable air dam that won't look DIY! Air dams have been well tested and proven to reduce front end lift, drag and increase downforce! At Nine Lives we take this a step further, 4.5* rake built in to make more downforce than any other air dam on the market. CNC cut so the rivet holes are straight and will not look like a drunk walking home

  • Made from .100" plastic
  • Tri-fold Rivets included.
  • Standard Cut with 4.5* rake (NASA Limit is 5*)
  • Long Nose cut with 25.5* rake for even more downforce and even less drag.

Support brackets.

Unsupported Dam will deform in direct wind without support.

We recommend supporting it one of two ways.

  • First attach it to your splitter.
  • If you don't have a splitter source 3/8 steel rod from (hetalsdepot.com). We have had good luck trimming the rod to length, hammering the ends flat, drilling a 3/16" hole and using the extra rivets supplied with the dam kit.

1990-2005 NA / NB Miata Splitter mounts! Thank you Trackable Miatas Facebook group for giving it the name of Sturdy Bois.

Splitters are a flat surface attached to the front of the car. This part increases air speed under the car, resulting in extra front downforce. in the past mounting a splitter was a time-consuming fabrication project. We are happy to announce adding a splitter is easy with Sturdi Boi Splitter Mounts from Nine Lives Racing. Sturdy Boi Splitter Mounts are brackets for you to attach your splitter. These mounts attach just in front of the radiator and offer a quick disconnect feature for a easy trailer loading. as a added bonus they double as radiator ducting. The mounts are solid to capture air and force it into your radiator. Will keep your car cooler for longer and increase downforce.

-Words from a race engineer. "To make a car lighter you must make every part do as many jobs as it can."



Notes about bumpers

Sturdy Bois are built and intended to be used with a splitter, Nine Lives Danm Dam and 64" The Big Wang this combination has been CFD tested to increase overall downforce by 310% You can keep your OEM bumper if you wish to use the radiator ducting feature. The ducting will fit behind the stock bumper.



The Details

  • More Downforce = Faster = Lower lap times
  • Aluminum construction
  • Front horns are set at 4.4* to hold your air dam, and make it legal for NASA racing.
  • Quick disconnect *
  • Radiator ducting included
  • Replacement parts ambidextrous for easy spares
  • Replacement parts available here
  • Emergency Break Away
    • If contact occurs mounts will snap before damaging OEM mounting points.

Warranty/Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wáng skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wángs and Mega Wings are covered by the Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

*Open air testing numbers available at https://9livesracing.com/cfd-testing
