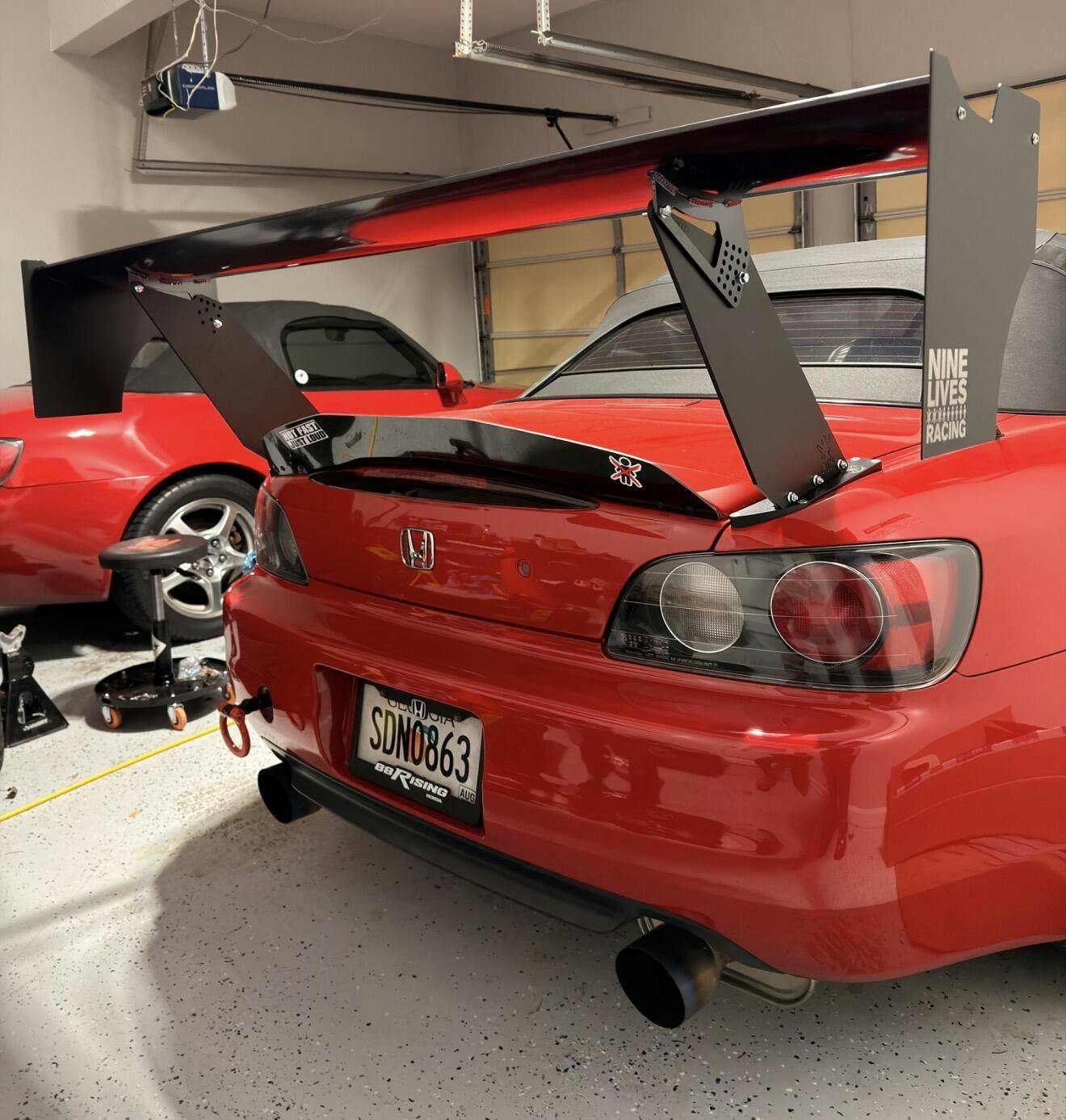

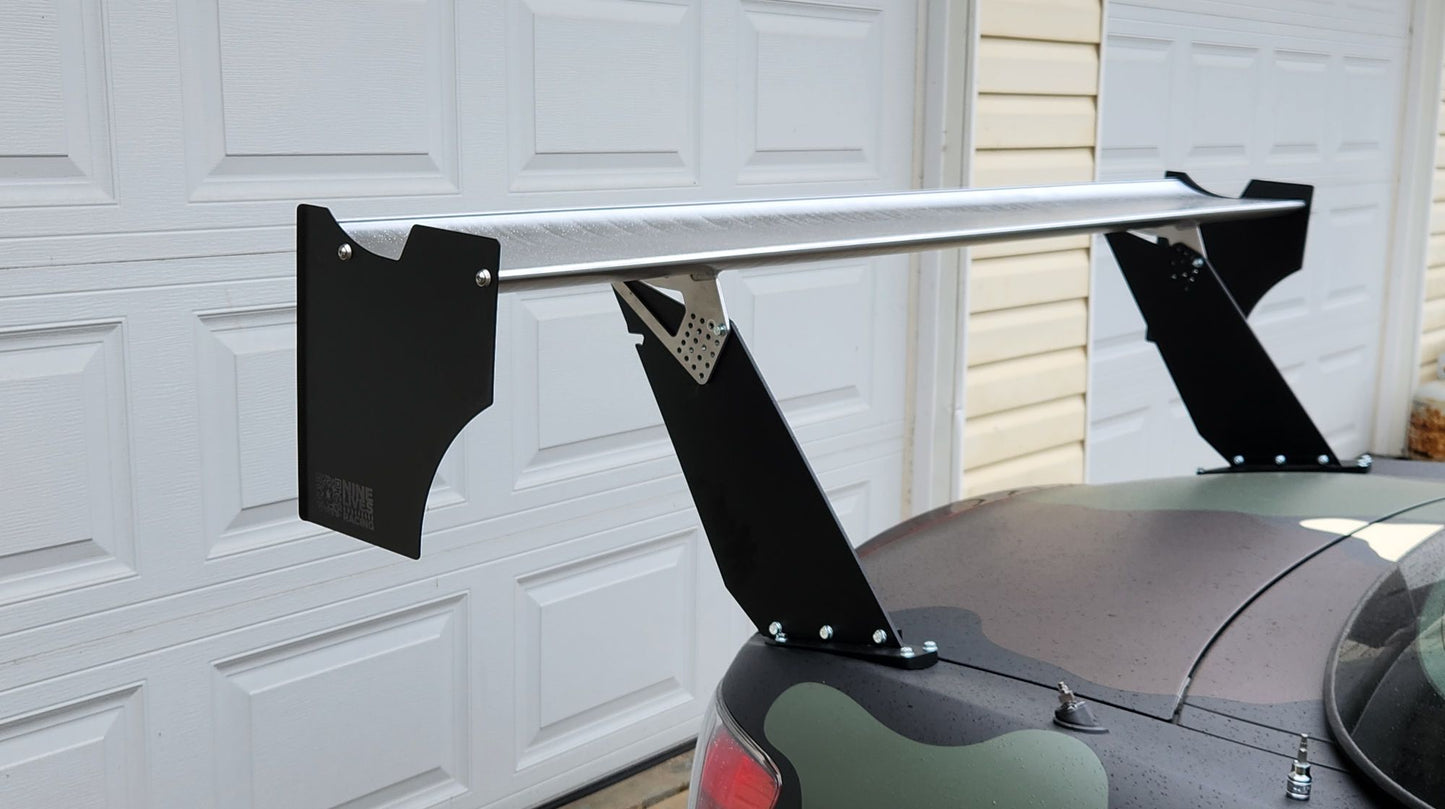

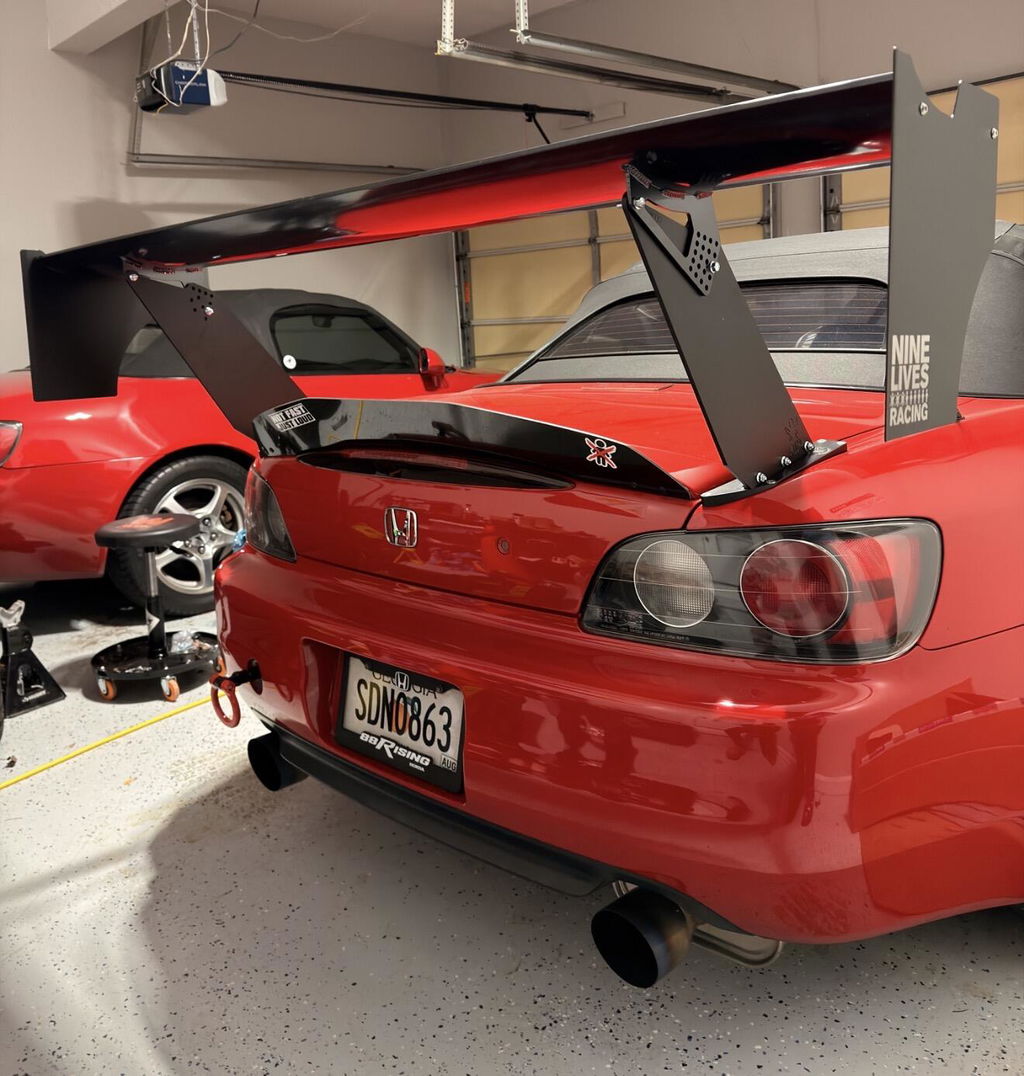

S2000 Big Wang Chassis Mount Kit '99-09 AP1/AP2

Regular price

$1,398.35
Wáng Width
Wáng Material
Details
Stand on your wing.
1999-2009 Honda S2000 Weld/Bolt in chassis mounts

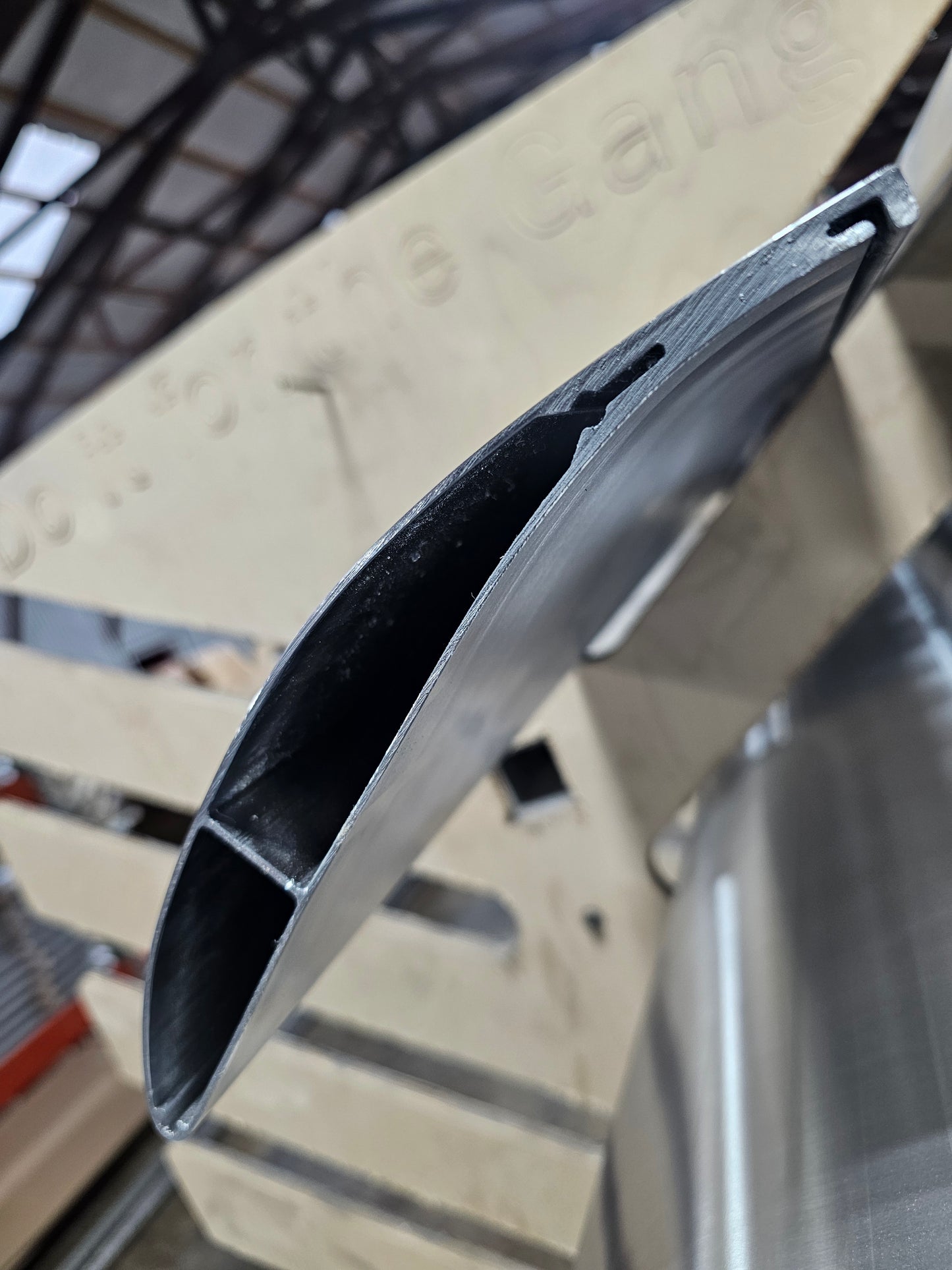

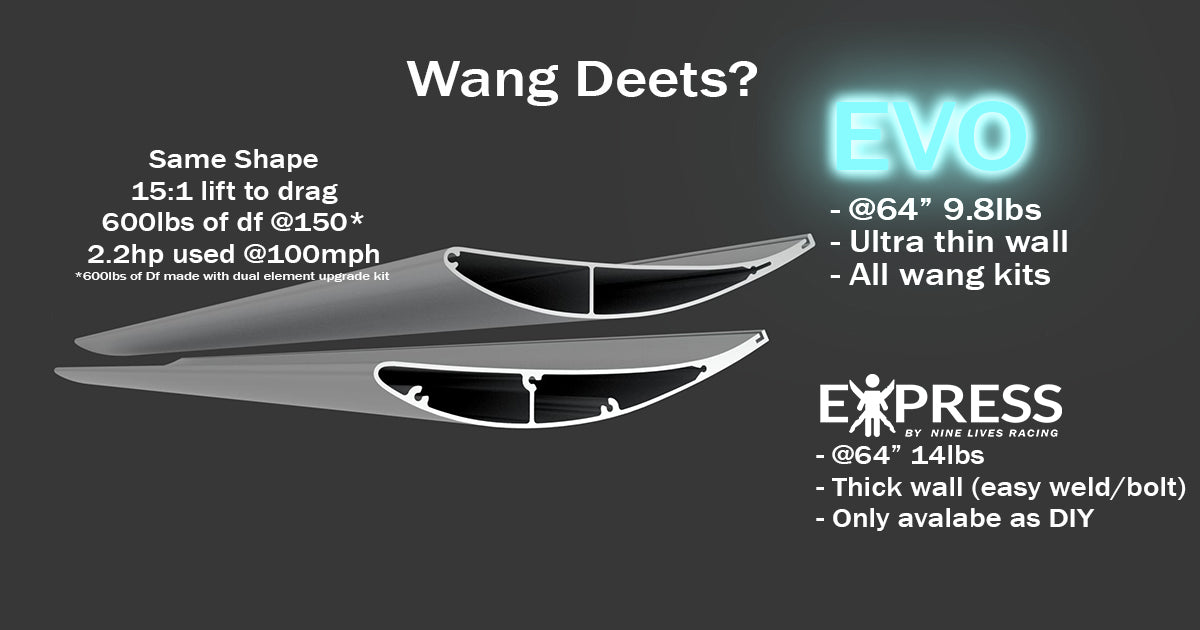

Get that big Wang GT3 performance!  The Big Wang is here! These Airfoils can produce incredible levels of down-force without killing top speed. Exactly what racers are after. Extruded aluminum wings are developed, patented, and built for a prototype project. Nine Lives Racing Takes the raw material and makes them readily available to the public as a working part. Best wing in class. 15.2:1 Lift to drag ratio, nothing else comes close. A built-in gurney flap relief for down-force adjustments in seconds.

  • Light Aluminum construction.
    • 0.2lbs per inch
  • Gurney flap ready
  • Up to 15.2:1 Lift Drag ratio*
  • low drag = more top speed!
  • American made
  • Track Tested
What's included.
  • Wing sized to your s2000
  • NLR “basic” End plates 10"x8"

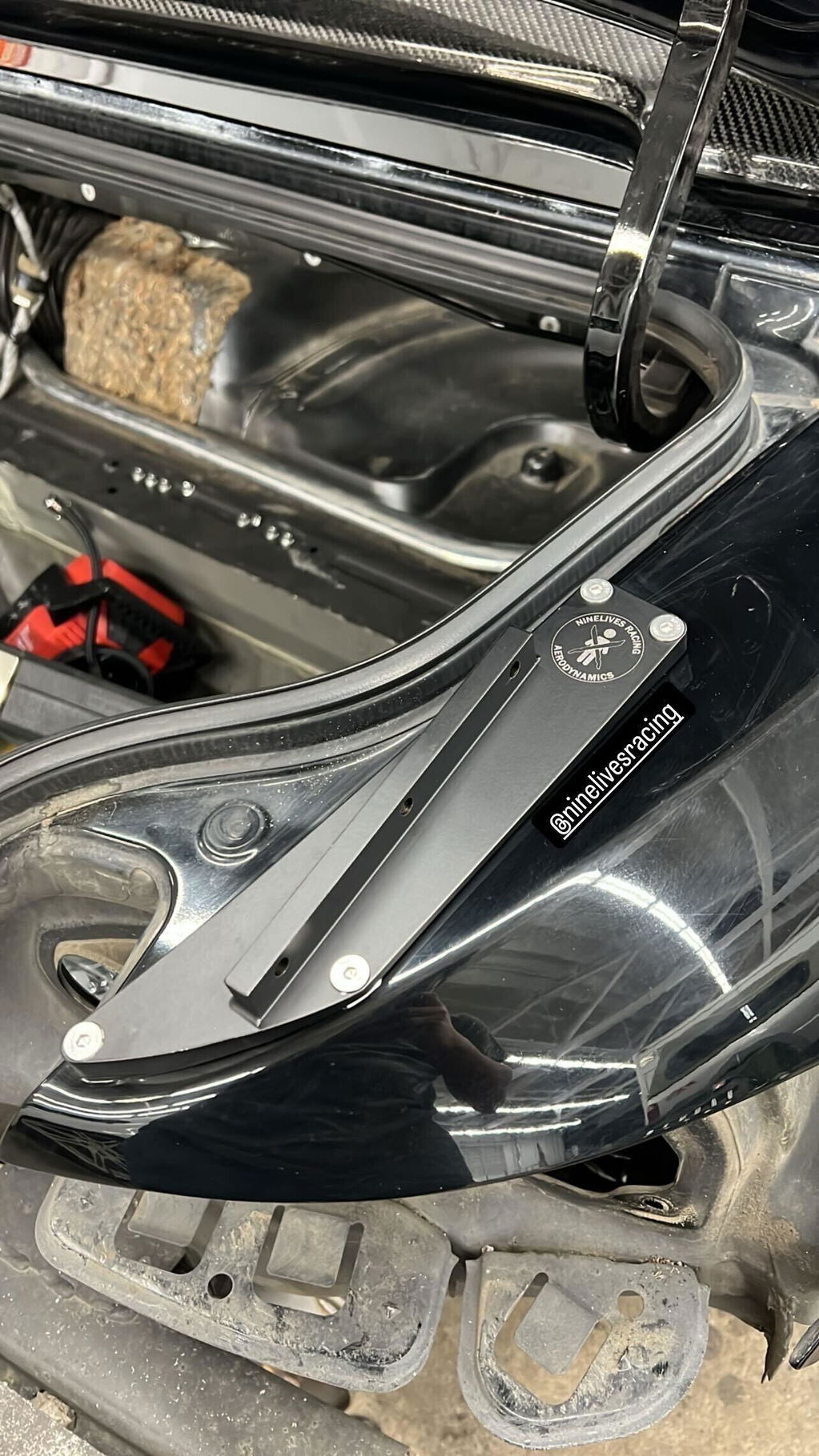

  • 3 piece Wing Chassis mount Wing Pylons
    • 2 piece aluminum and a steel plate.
  • bottom mount is a steel plate for welding or bolting.
  • Stainless Steel or nickel-plated hardware

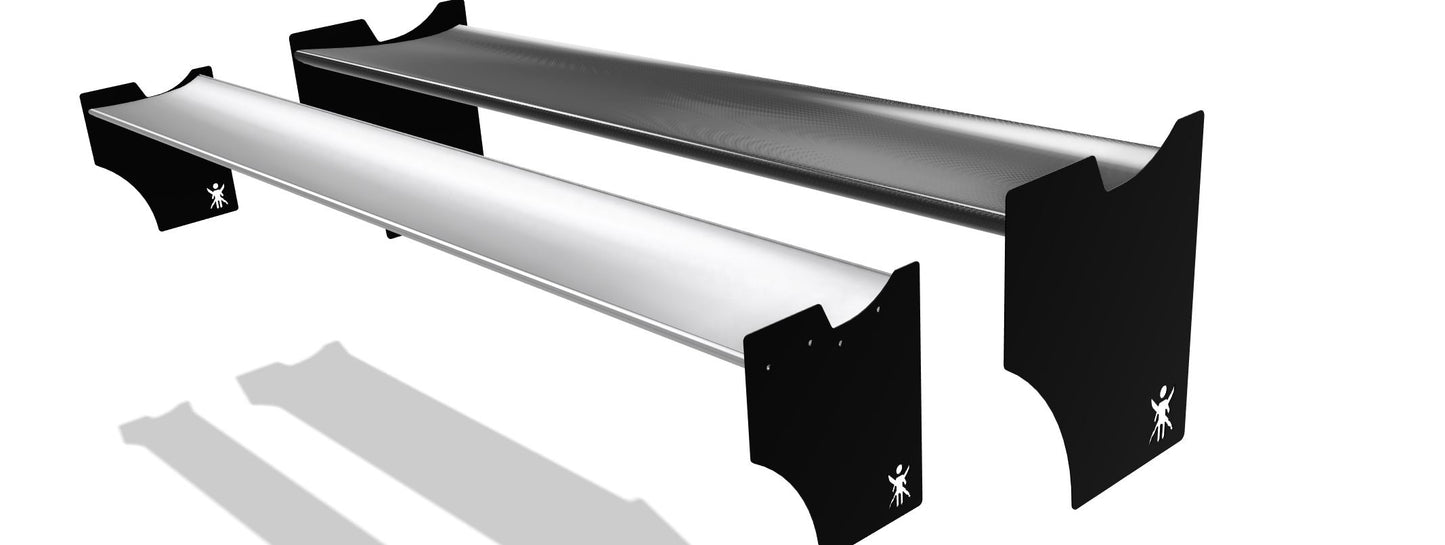

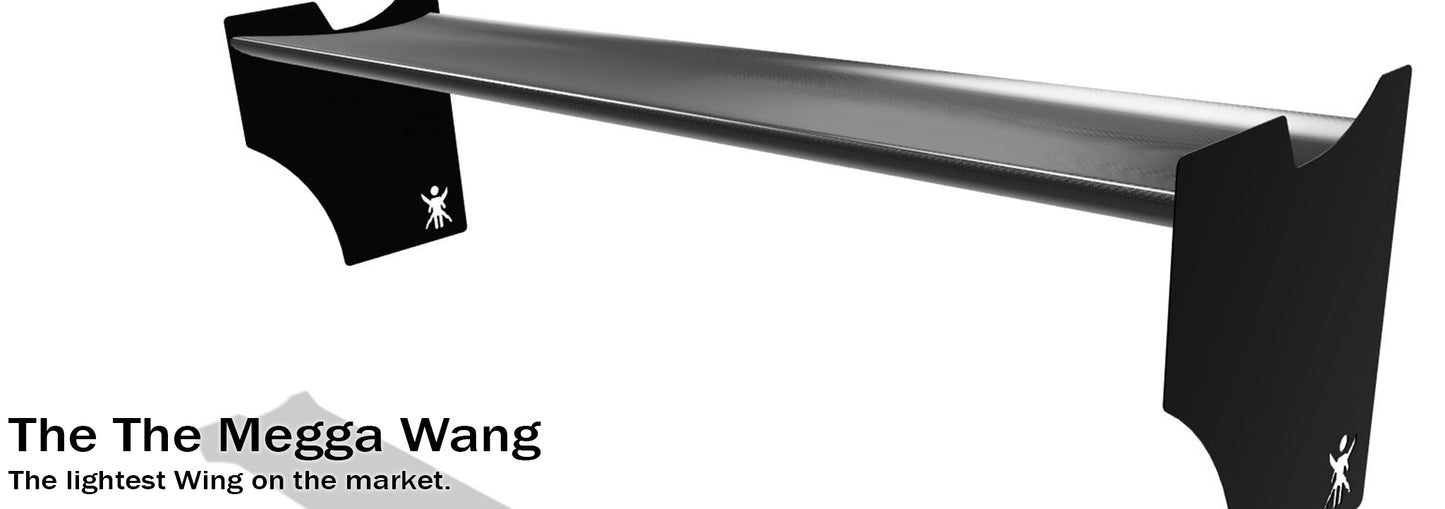

    Upgrade Endplates To MEGA end-plates

    • 10% Downforce increase 7% reduction in drag.
    • 12"x10.5" huge end-plates
    • NASA legal
    • AOA adjustment.



    Warranty/Returns/Lead times

    Click here for current shipping estimates for new orders. All items are built to order.

    Powder coat or vinyl "wáng skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

    Wángs and Mega Wings are covered by the Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

    *Open air testing numbers available at https://9livesracing.com/cfd-testing
