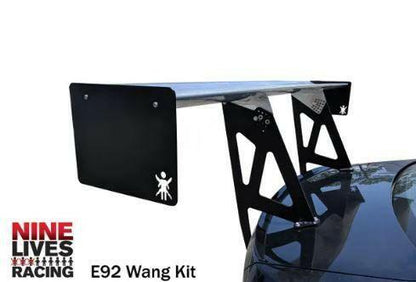

  • A 3-Series Big Wang kit '04-13 E90/E92/E93 by 9livesracing is mounted on a car. The kit features a large, flat spoiler supported by two black, triangular brackets. Crafted from extruded aluminum wings for maximum downforce, the 9livesracing logo and product name are displayed in the bottom left corner of the image.
  • A graphic showcasing a black car part with features highlighted. Labels include "ADJUSTABLE" for wing angle adjustment, "Prepreg Carbon Fiber" for lightweight and strength, and "REAR SPAR DESIGN" for added strength and trunk protection. 3-Series Big Wang kit ’04-13 E90/E92/E93 with extruded aluminum wings enhances downforce. The "9livesracing" logo is at the bottom right.
  • A car with its trunk open is parked in front of an industrial building. The interior of the trunk lid reveals metal reinforcements and wiring, while the 3-Series Big Wang kit ’04-13 E90/E92/E93 from 9livesracing, featuring extruded aluminum wings for added stability, is visible. The building's exterior consists of corrugated metal walls with several air conditioning units attached. Parts of another parked car can also be seen nearby.
  • An image displaying two graphs and data tables comparing downforce and drag against air velocity (MPH) for various angles of attack (AOA). The top graph, showcasing the 9livesracing 3-Series Big Wang kit '04-13 E90/E92/E93, illustrates "Down Force vs Velocity," while the bottom graph presents "Drag vs Velocity." Data tables for different AOAs are shown on the left.
  • A fluid dynamics simulation image shows airflow patterns around a structure labeled "All taken from AOAQ @ 140 MPH." The airflow around the 9livesracing 3-Series Big Wang kit for ’04-13 E90/E92/E93 is visualized with colored streamlines, and a color bar indicates velocity and relative pressure values, highlighting increased downforce.
  • Two minimalist black and white shelves are shown side by side, each showcasing a simple, modern design with flat surfaces and vertical supports on either end. The supports feature tiny icon figures for a decorative touch against a plain white background, inspired by the sleek look reminiscent of the 3-Series Big Wang kit ’04-13 E90/E92/E93 from 9livesracing.
1 12

9livesracing

3-Series Big Wang kit ’04-13 E90/E92/E93

3-Series Big Wang kit ’04-13 E90/E92/E93

$1,271.55 USD
$1,271.55 USD
Sale Sold out
Shipping calculated at checkout.
Wáng Material

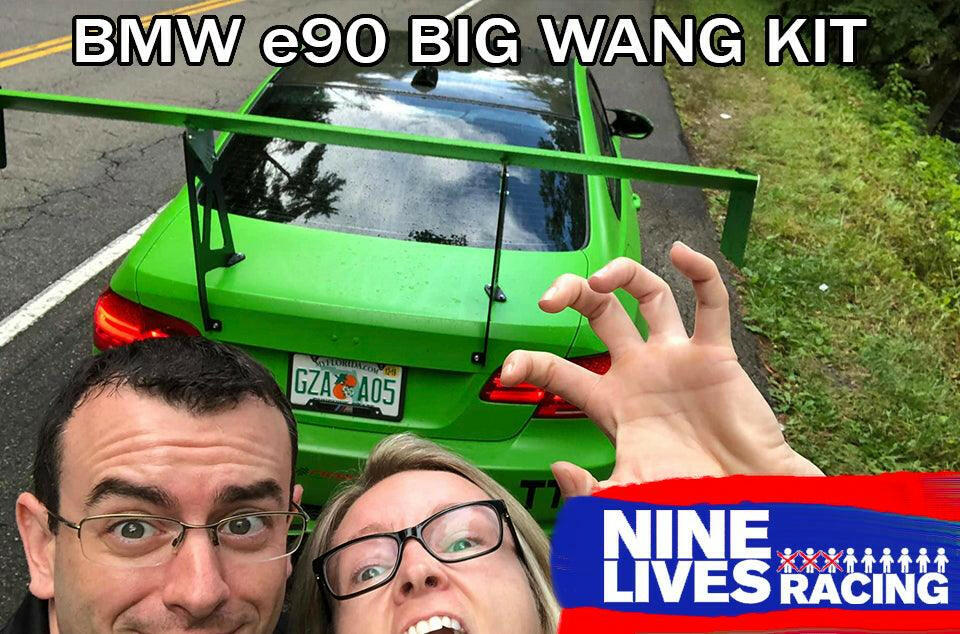

The 70" Big Wáng for the new track monsters: BMW E9x Wáng kit

Get that Big Wang GT3 performance!

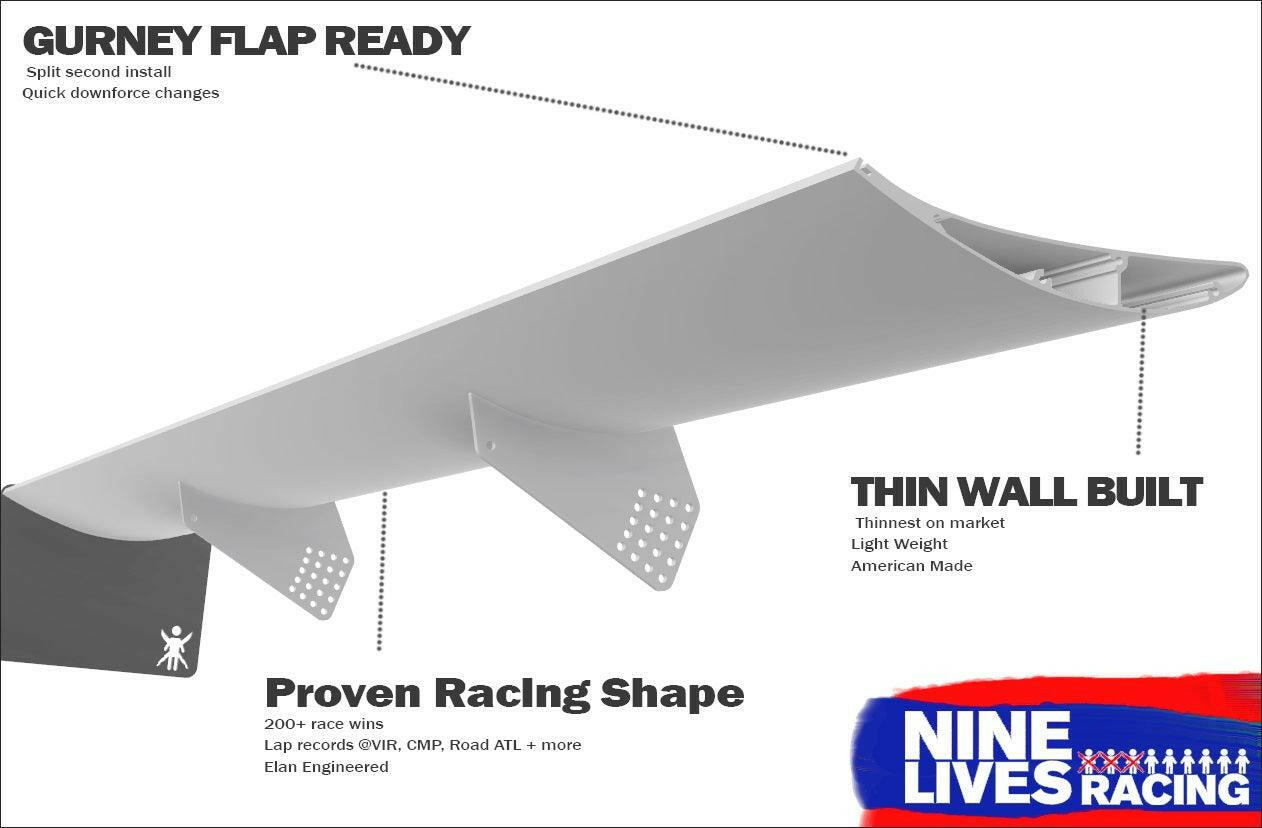

The Big Wang is here! These Airfoils can produce incredible levels of down-force without killing top speed. Exactly what racers are after. Extruded aluminum wings were developed, patented, and built for a prototype project. Nine Lives Racing takes the raw material and makes them readily available to the public as a working part. It's the best wing in its class. 15.2:1 lift-to-drag ratio*. Nothing else compares. A built-in gurney flap relief allows for down-force adjustments in seconds.

Features

  • Light Aluminum construction.
    • 0.2lbs per inch
  • Gurney flap ready

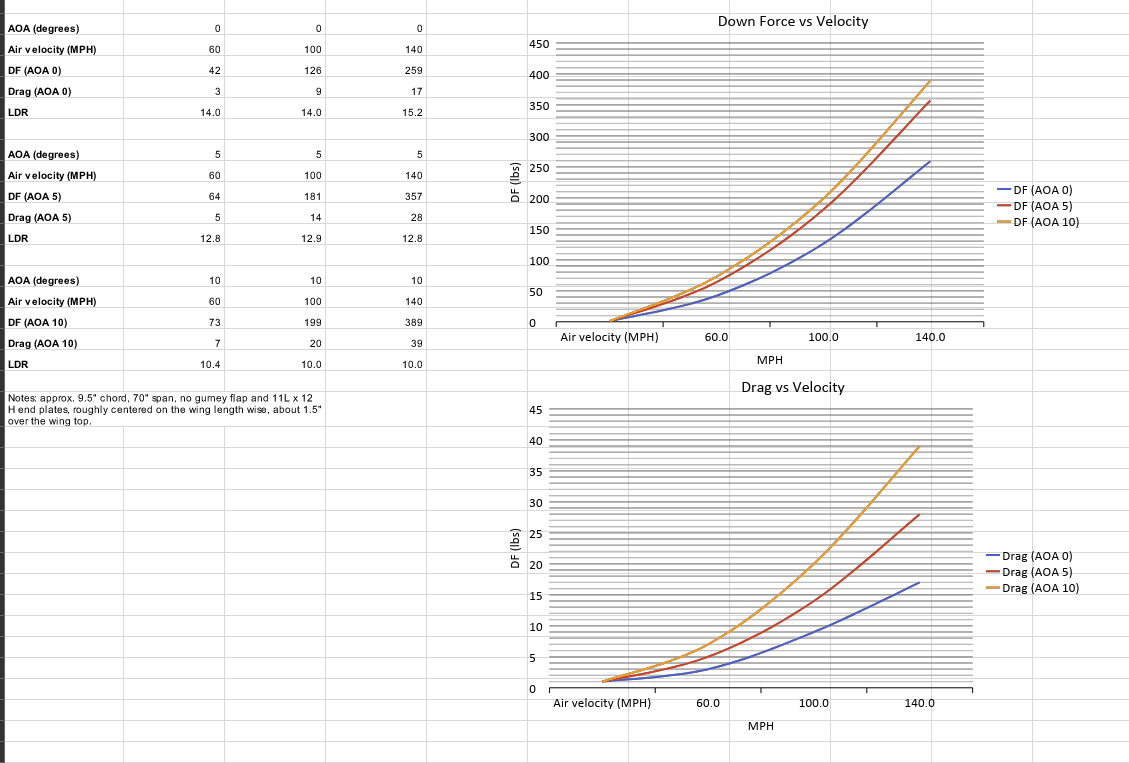

  • Up to 15.2:1 Lift-to-Drag ratio*
  • Low drag = More top speed!
  • American Made
  • Track Tested

What's included:

  • Wing sized to your car

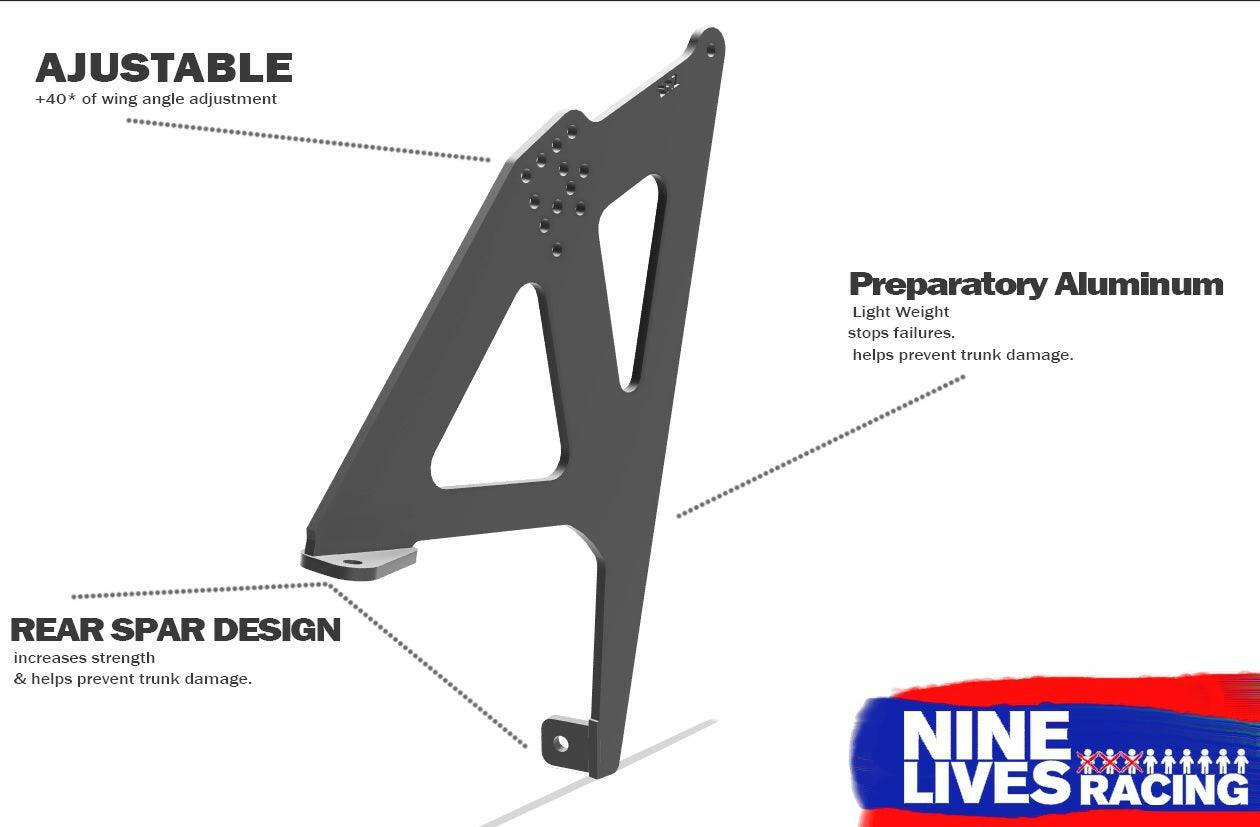

  • Model-specific pylons (no cookie cutter solutions here!)
  • NLR “basic” End plates 10"x8"
  • Stainless Steel hardware

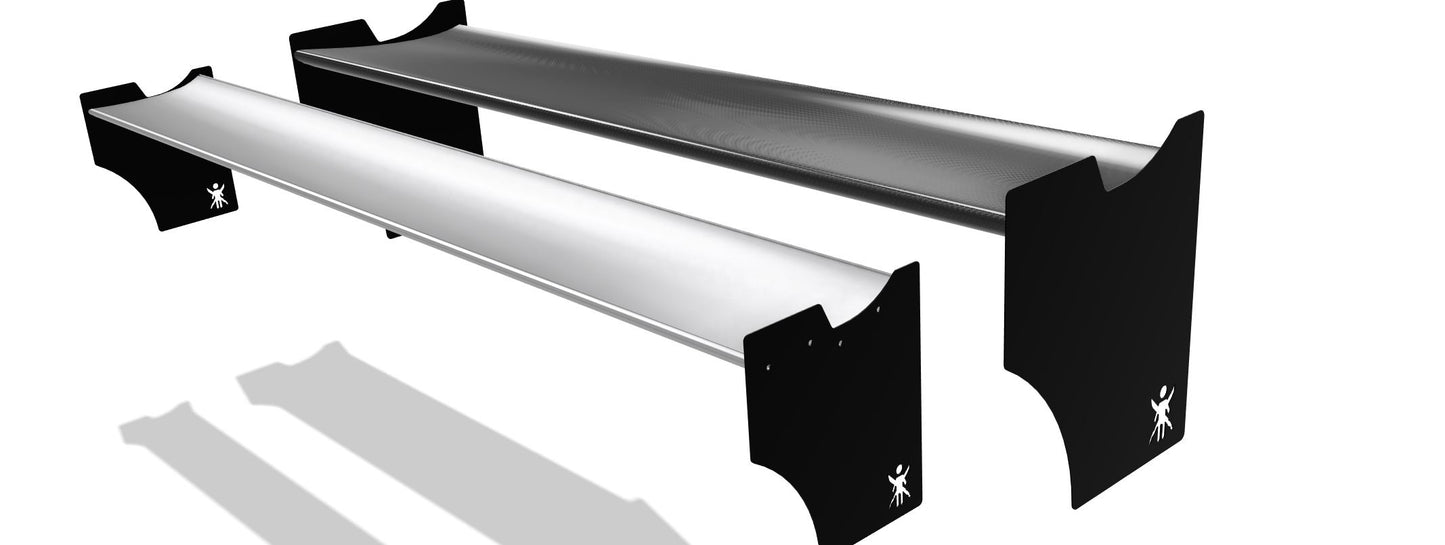

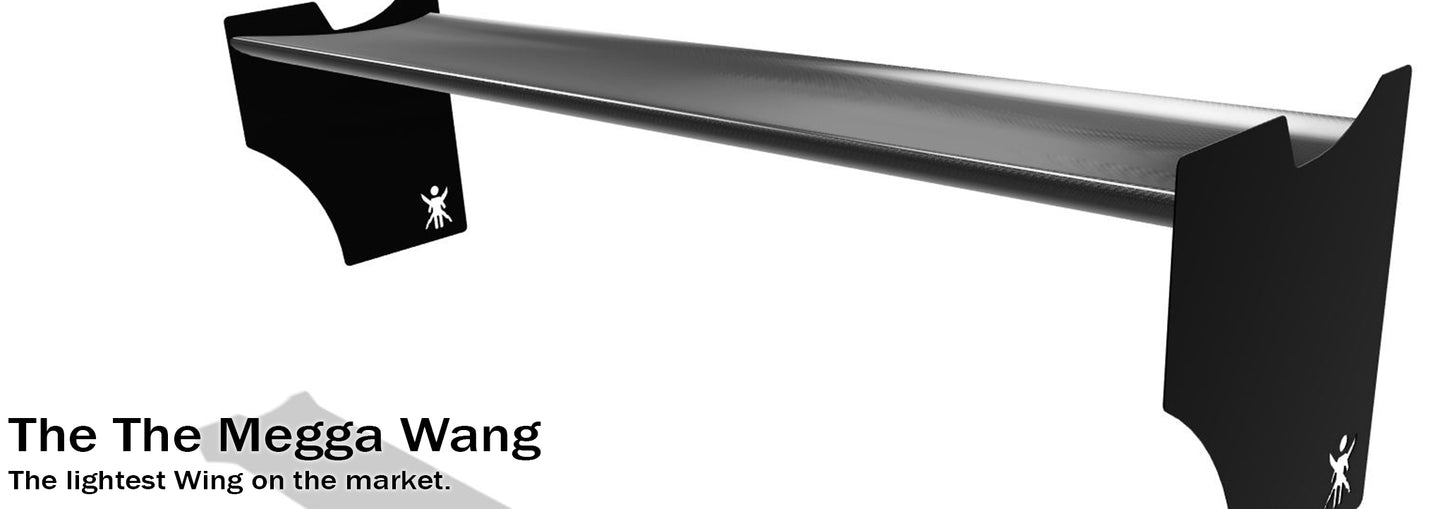

Upgrade end-plates To MEGA end-plates

  • 12"x10.75" huge end-plates
  • Increases downforce by 10%*
  • DECREASES drag by 7%!!*
  • NASA legal
  • AOA adjustment.

Warranty/ Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wang skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wangs and Mega Wings are covered by Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

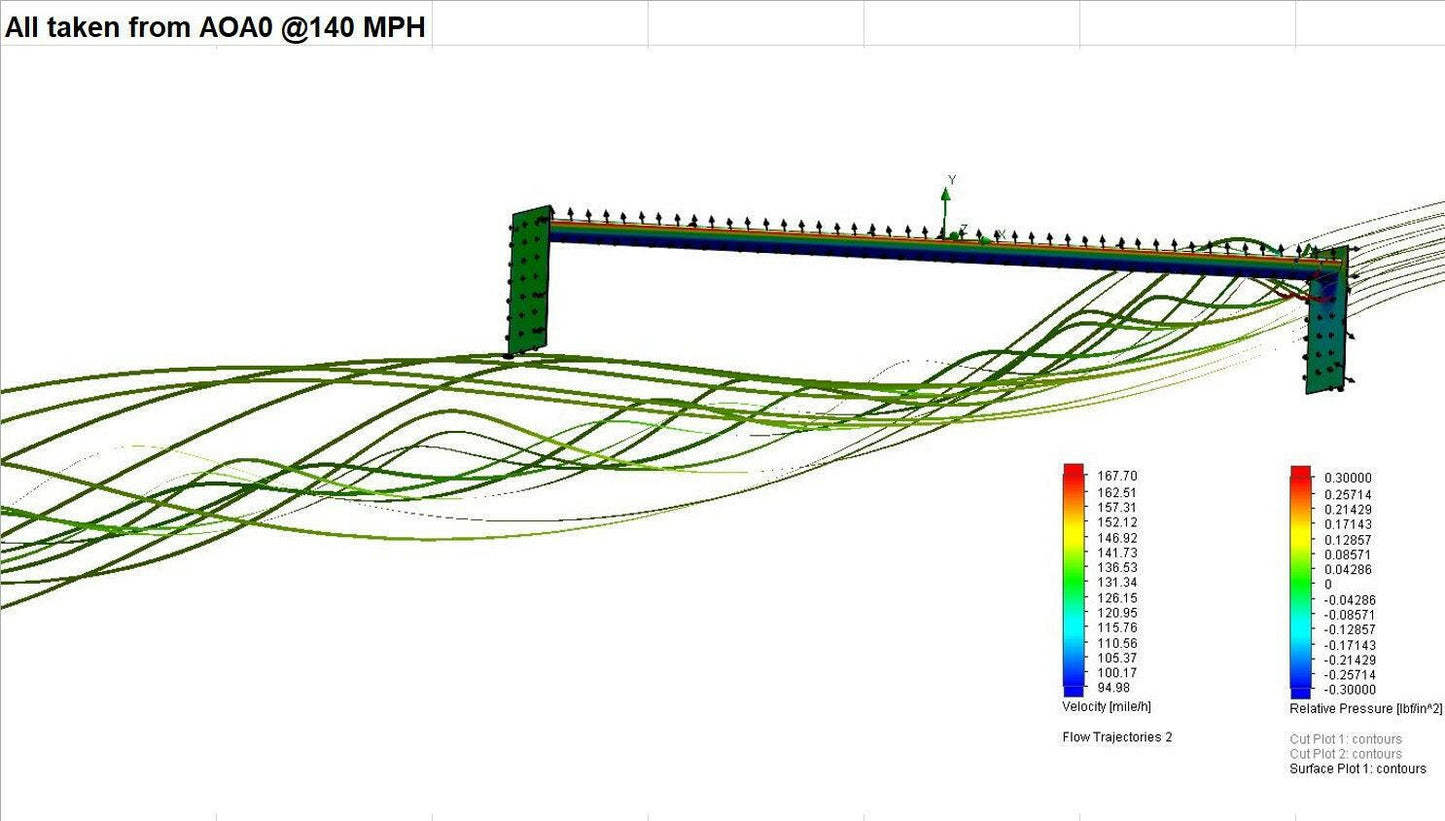

* Open air testing numbers available at https://9livesracing.com/cfd-testing
