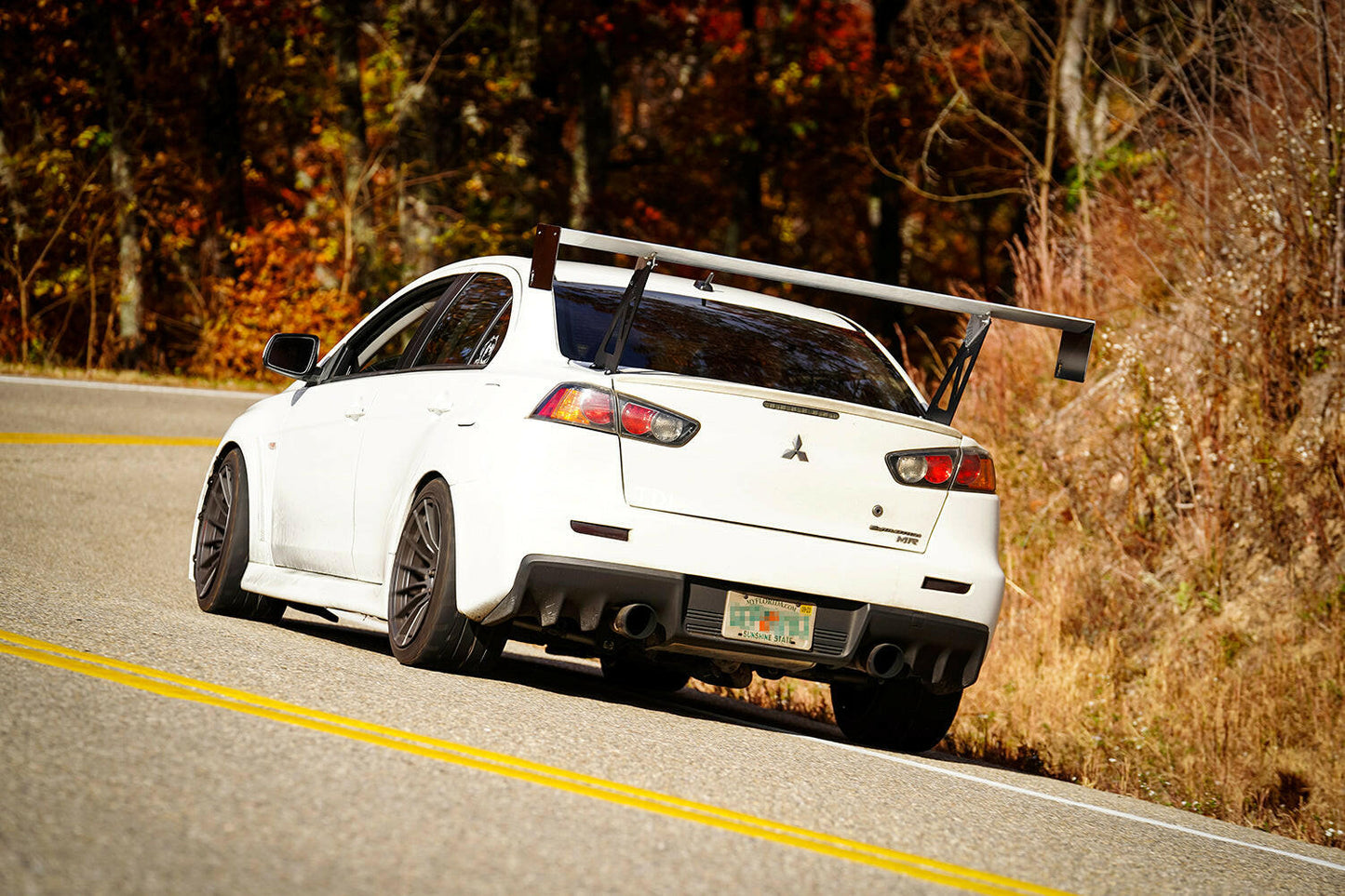

• A white Mitsubishi Lancer Evolution, equipped with the Evolution 10 Big Wang kit from 9livesracing, gracefully navigates a winding road flanked by autumn-colored trees. The car boasts a prominent rear spoiler and aluminum wings, along with black rims and tinted windows, capturing the motion and vibrant fall foliage beautifully.

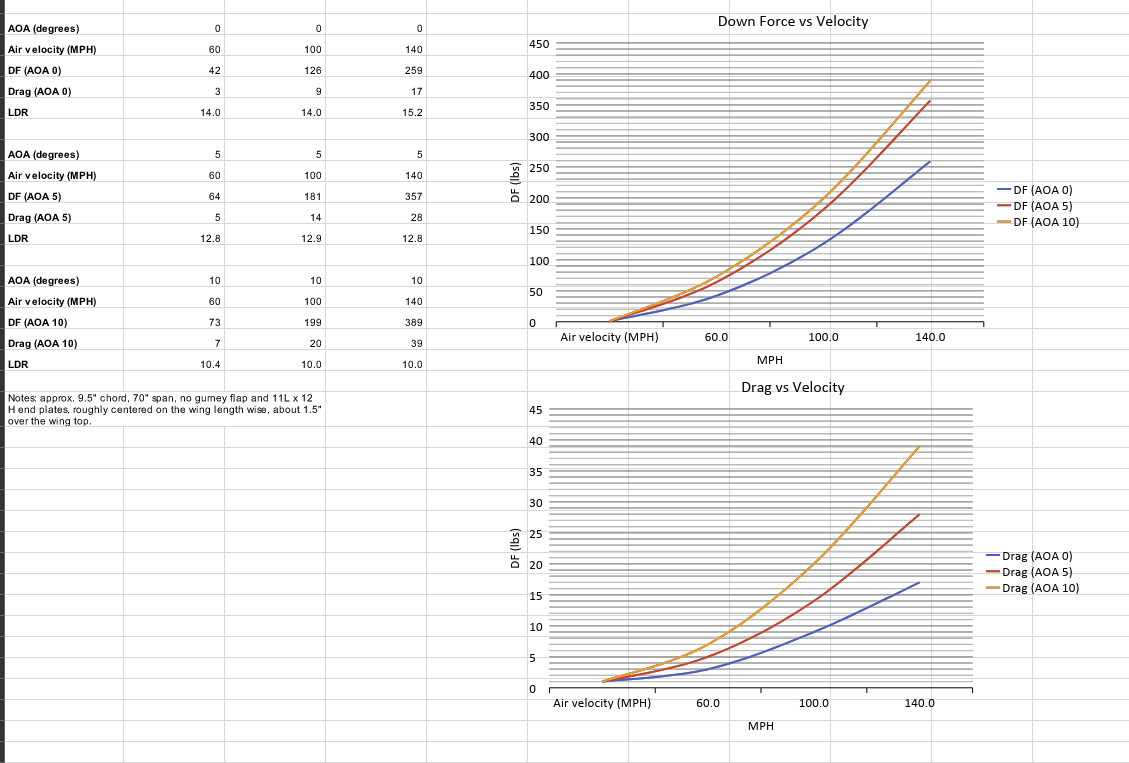

  • A spreadsheet for the "Evolution 10 Big Wang kit" by 9livesracing contains two graphs and multiple columns of data. The top graph, labeled "Down Force vs Velocity," illustrates down-force for different angles of attack (AOA) versus air velocity. The bottom graph, titled "Drag vs Velocity," depicts drag for various AOAs against air velocity. The data table includes values for AOA, air velocity, downforce, drag, and lift-to-drag ratio (L/D).

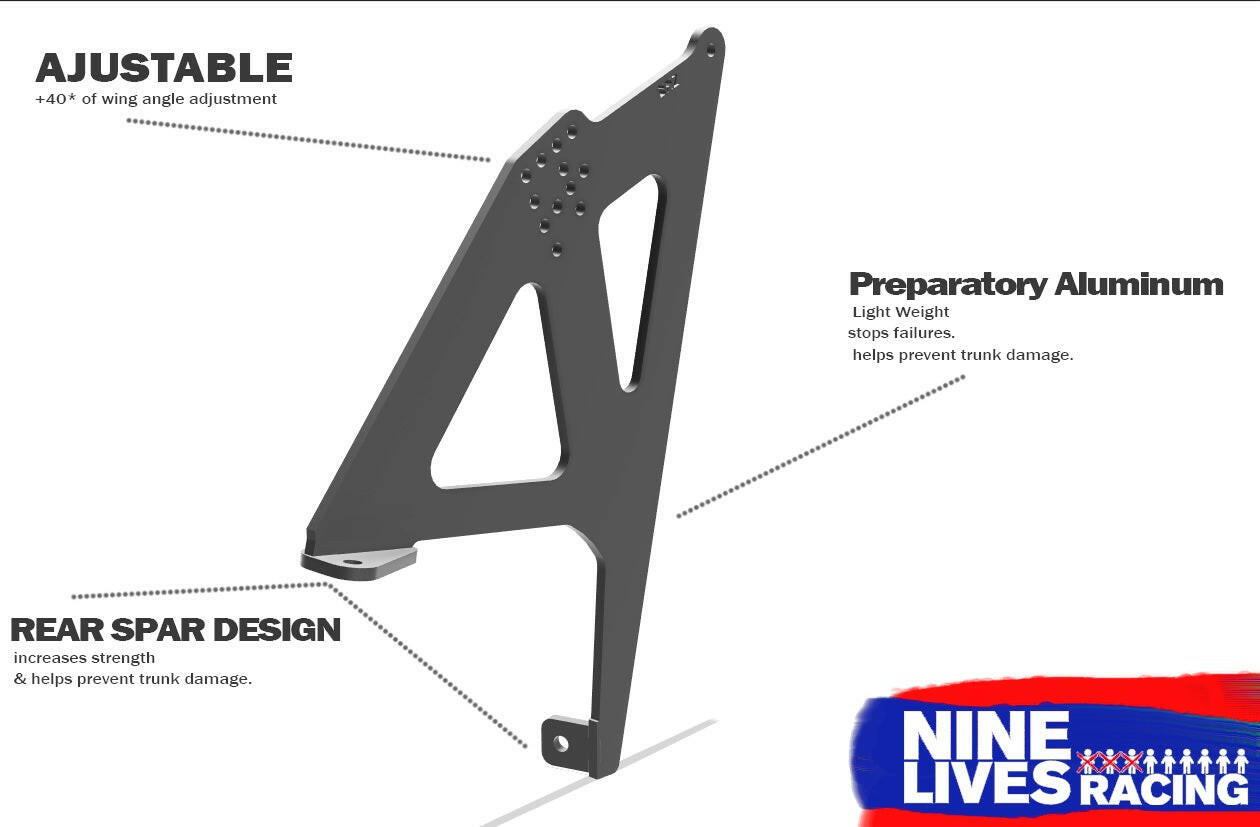

  • A product image displays a black adjustable automotive part with annotations highlighting its features. The Evolution 10 Big Wang kit from 9livesracing offers +40°/-40° wing angle adjustment, is made of lightweight preparatory aluminum, and features a rear spar design for increased strength. Logo: "Nine Lives Racing." Experience ultimate down-force with this Big Wang!
  • Screenshot of a social media comment thread. The first comment by Stephen Drummond asks, "Do you have an Evolution 10 Big Wang kit?" Colt Nixon responds, "Evolution 10 Big Wang kit by 9livesracing with sturdy boi mounts and serious down-force. Has dragged on every curb in front of my house. Still in fantastic shape.

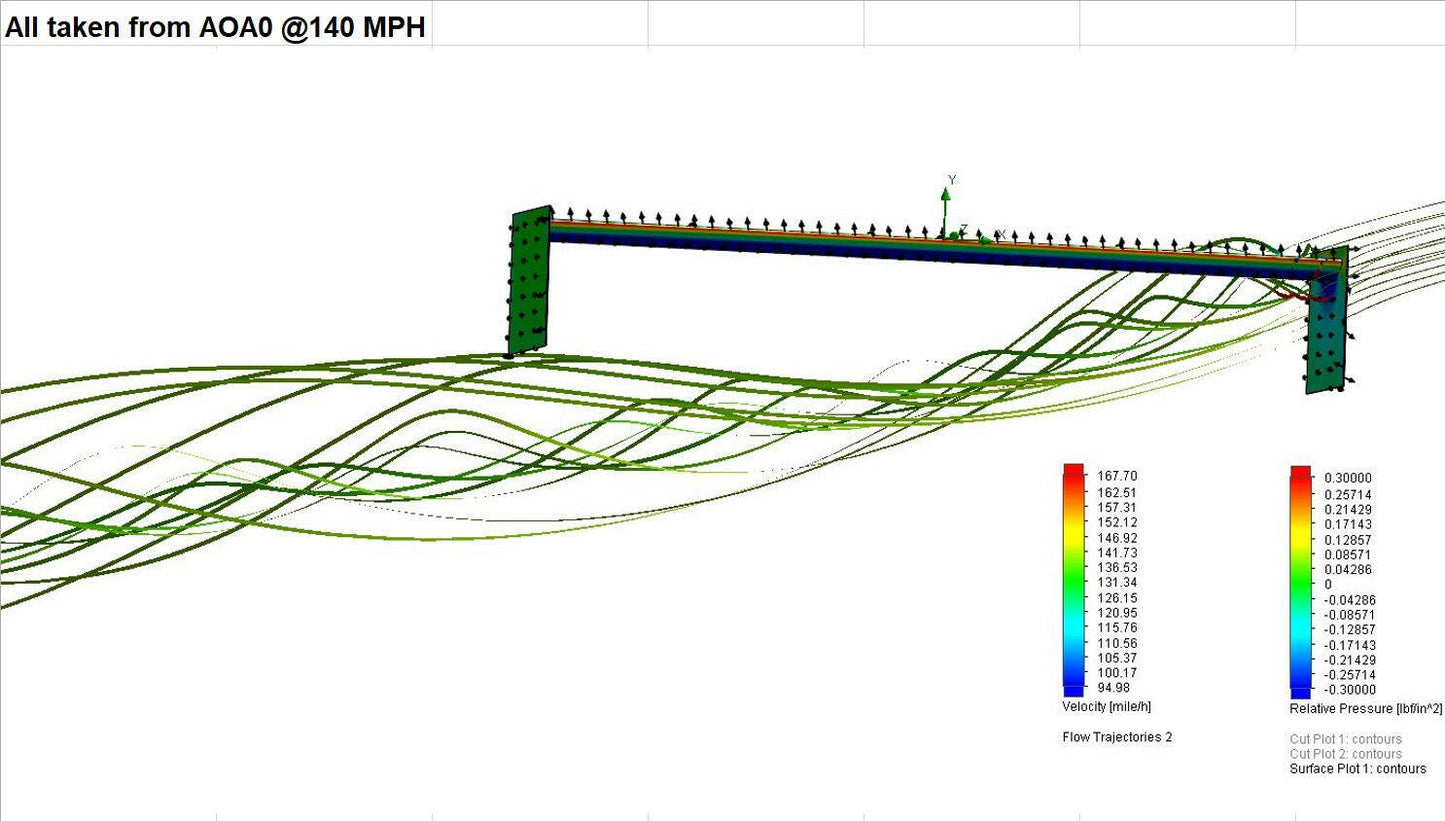

  • A CFD simulation of airflow over 9livesracing's Evolution 10 Big Wang kit. The image displays velocity streamlines with a color scale indicating velocity magnitude. Flow trajectories are visualized, demonstrating down-force effects. Axes are marked, and data is taken from an angle of attack at 140 mph.

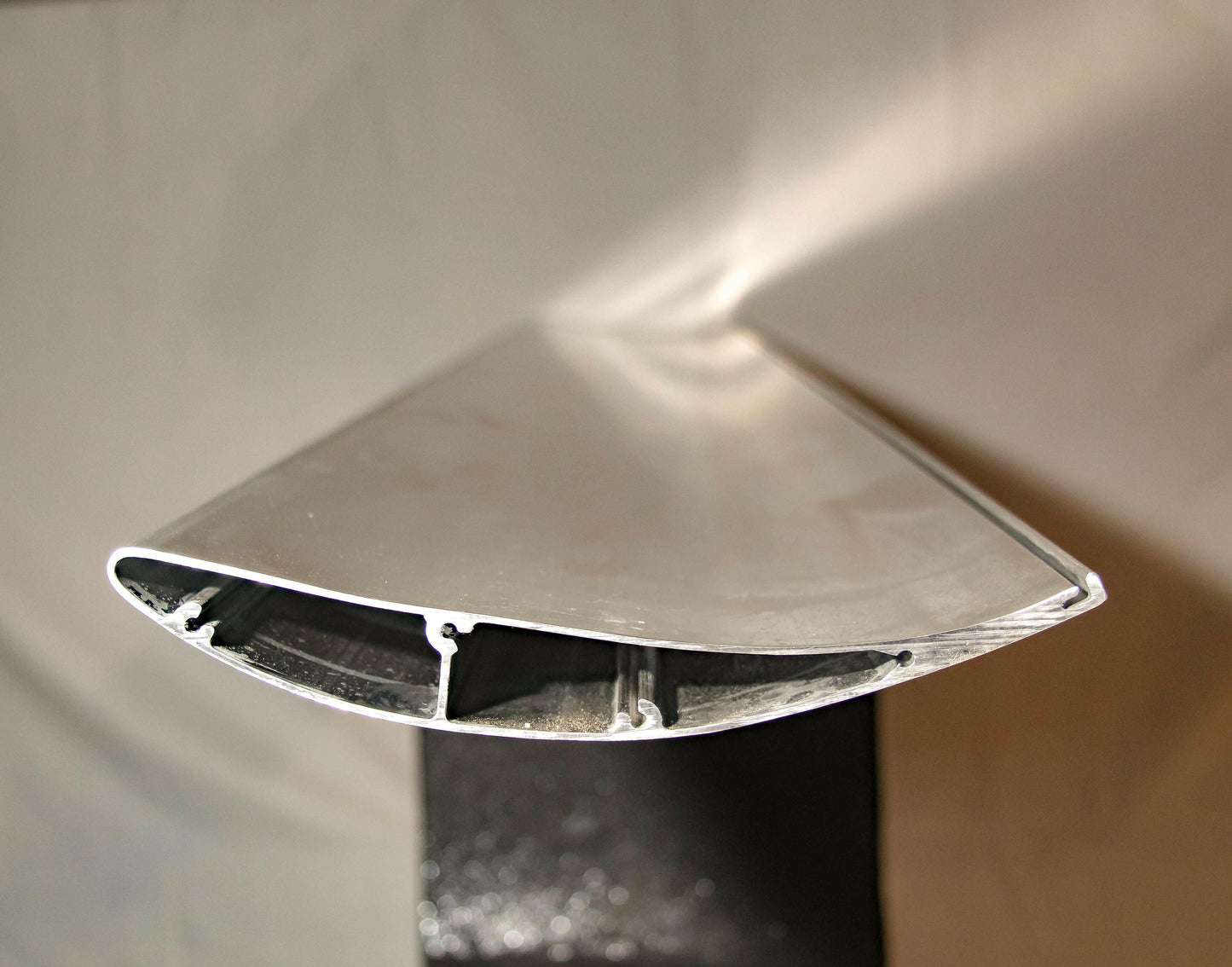

  • Close-up view of the cross-sectional structure of a metallic aircraft wing using the Evolution 10 Big Wang kit by 9livesracing. The image showcases the intricate design within the aluminum wings, emphasizing internal components and aerodynamic shape. The background is blurred to focus attention on the wing's details.

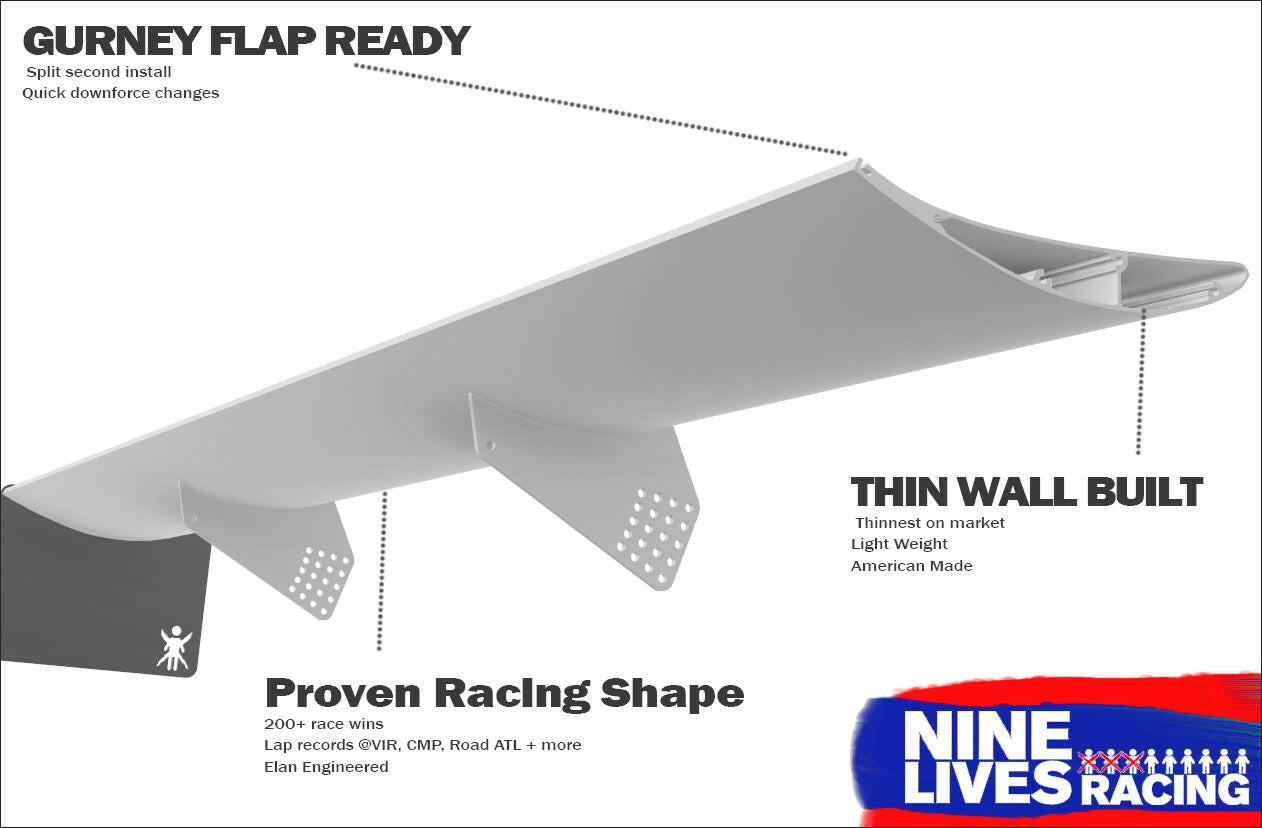

  • A detailed rendered image of the Evolution 10 Big Wang kit featuring labels such as "Gurney Flap Ready," "Thin Wall Built," and "Proven Racing Shape." The image includes the 9livesracing logo at the bottom right, alongside text emphasizing the product's lightweight design, down-force optimization, and American-made aluminum wings.

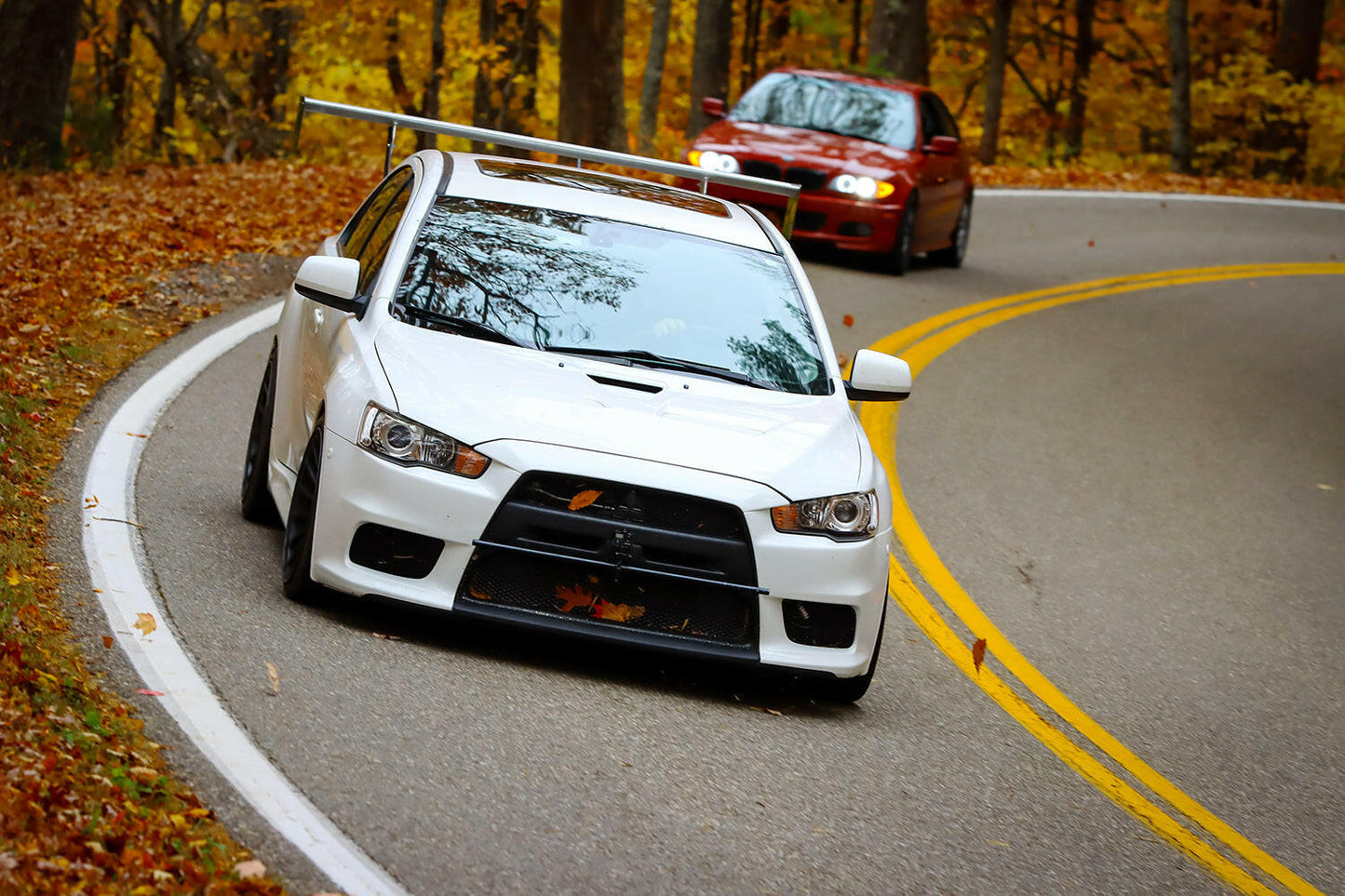

  • A white sports car equipped with the 9livesracing Evolution 10 Big Wang kit, complete with aluminum wings and a large rear spoiler, and adorned with an orange leaf on its front grill, drives around a winding road lined with autumn leaves. Closely behind it follows a red car. The trees on either side showcase fall foliage in shades of yellow, orange, and brown.

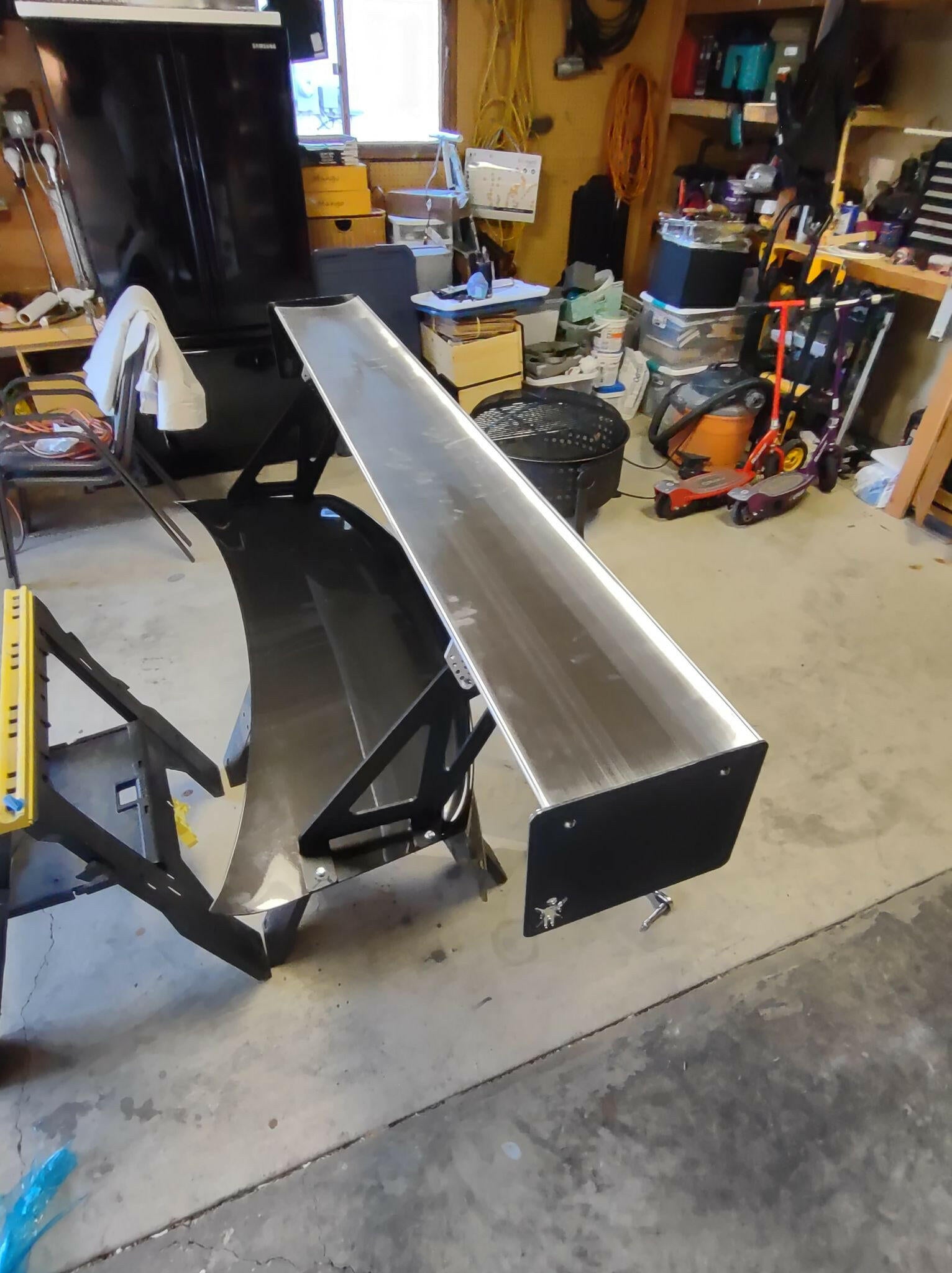

  • The Evolution 10 Big Wang kit, by 9livesracing, features a large aluminum wing that generates significant down-force and is mounted on a black trunk lid in a cluttered garage. Shelves and tools are visible in the background, along with a black refrigerator and wooden cabinets. The garage appears to be a workspace for car modifications.

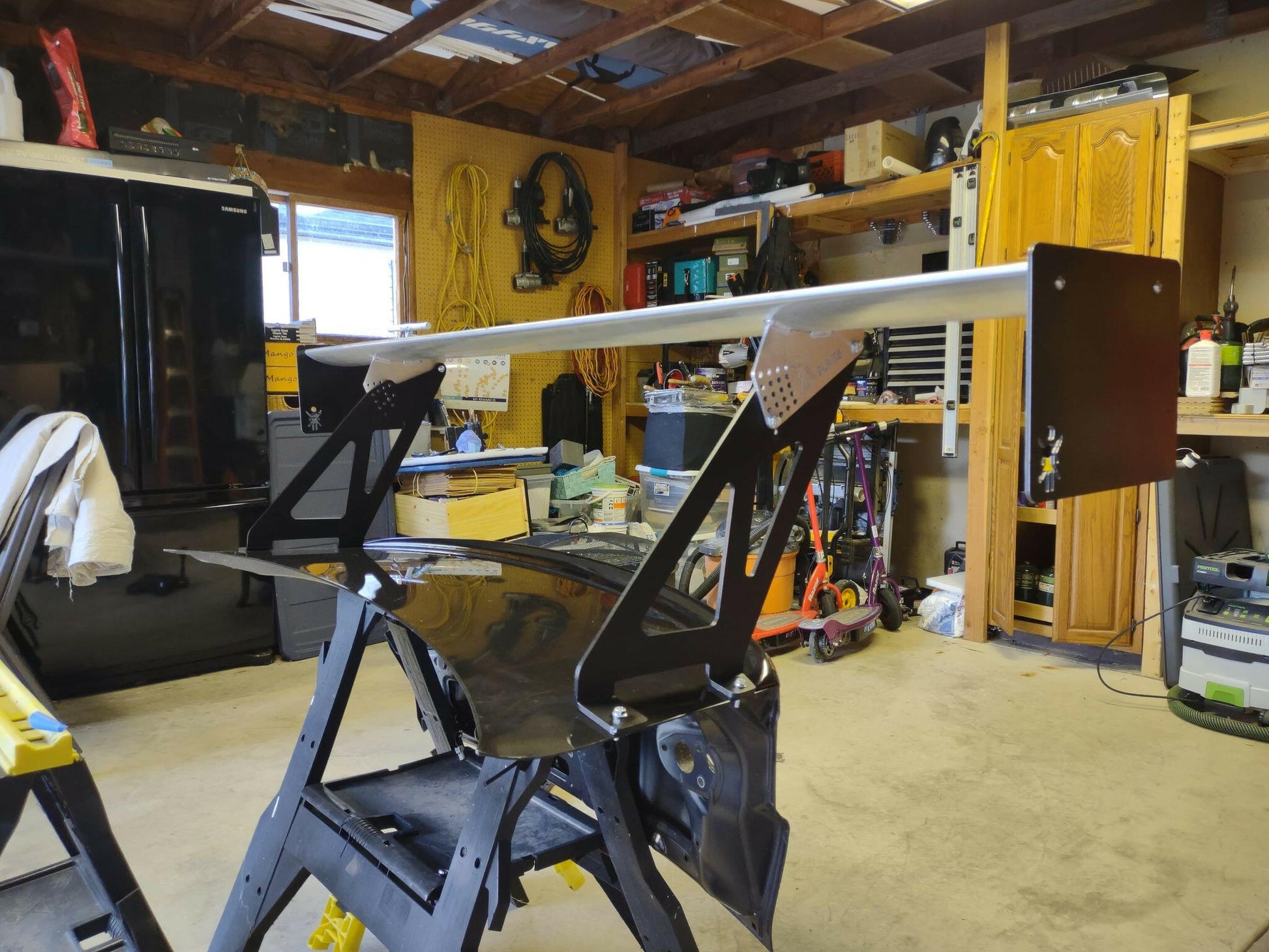

  • An Evolution 10 Big Wang kit by 9livesracing, likely crafted from aluminum to enhance down-force for an automobile, is installed indoors, possibly in a garage or workshop. The wing is supported by a black frame amidst scattered tools and equipment; nearby are a lawnmower, shelves stocked with various supplies, and extension cords hanging on the wall.

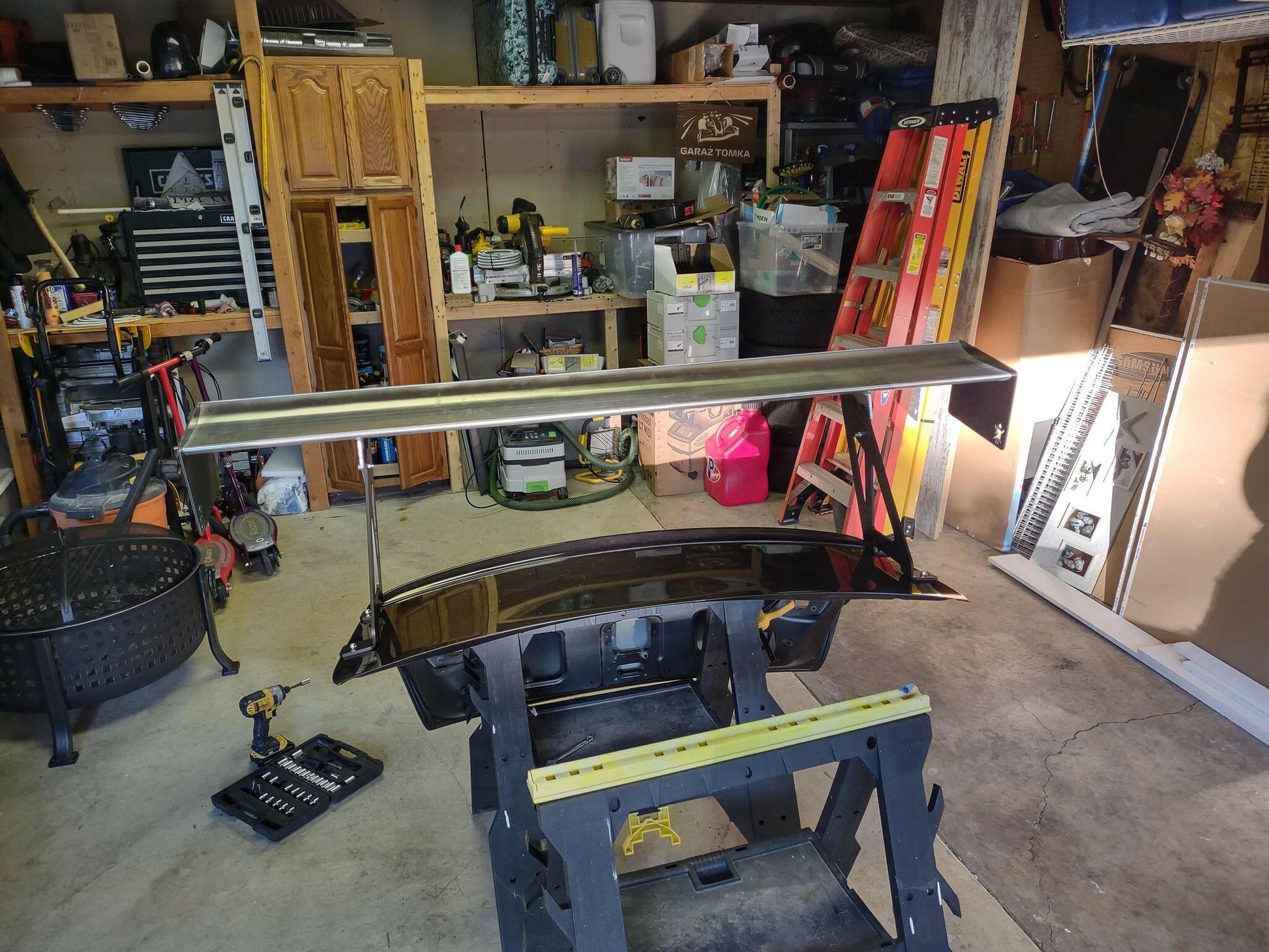

  • A cluttered garage with tools, shelves, and various items. In the center, a large black Evolution 10 Big Wang kit by 9livesracing is being worked on, placed on a sawhorse with a power drill nearby. A red ladder leans against the back wall, and various storage boxes are visible on the shelves.

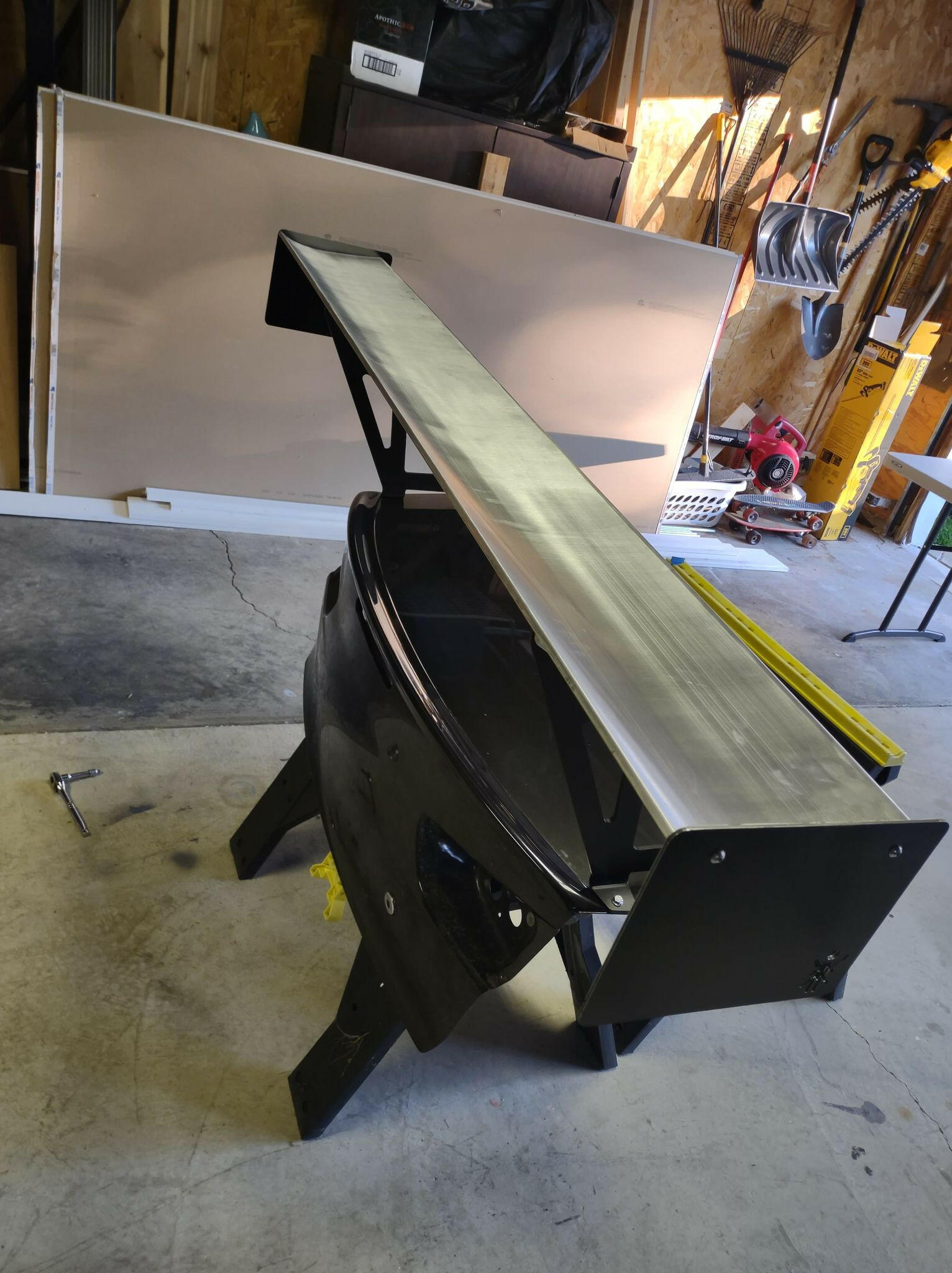

  • In a garage or workshop, the Evolution 10 Big Wang kit from 9livesracing, a large black metal spoiler nicknamed the Big Wang, stands upright on a concrete floor. Behind it, an assortment of tools, wooden panels, and construction materials are visible. A wrench placed near the spoiler suggests recent adjustments for achieving optimal down-force.

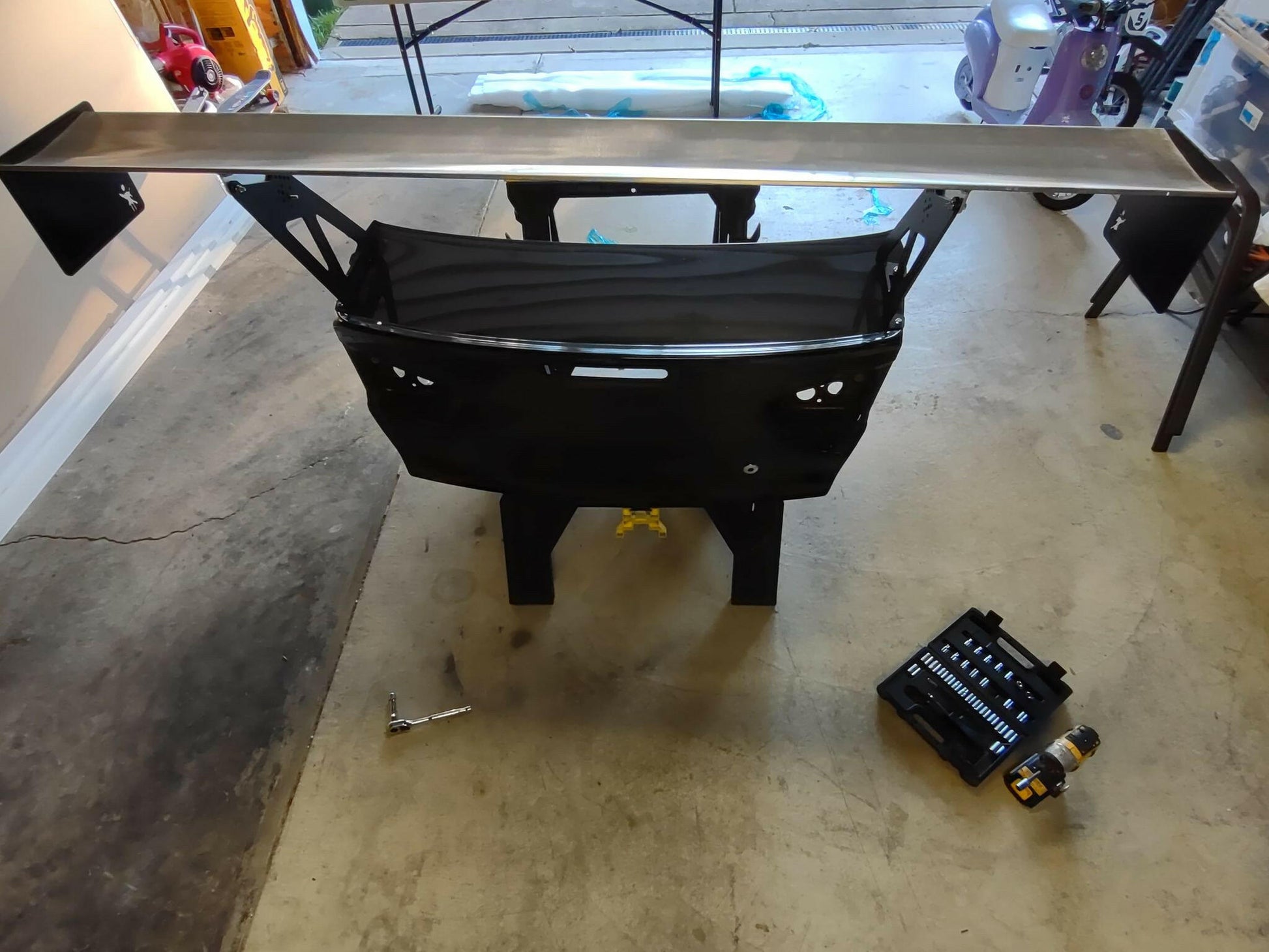

  • A workbench with an Evolution 10 Big Wang kit from 9livesracing being assembled. Tools and equipment, including a wrench, a toolkit, and a power drill, are placed on the concrete floor around the workbench. The setting appears to be a garage with various items in the background, highlighting an impressive aluminum wing designed for maximizing down-force.

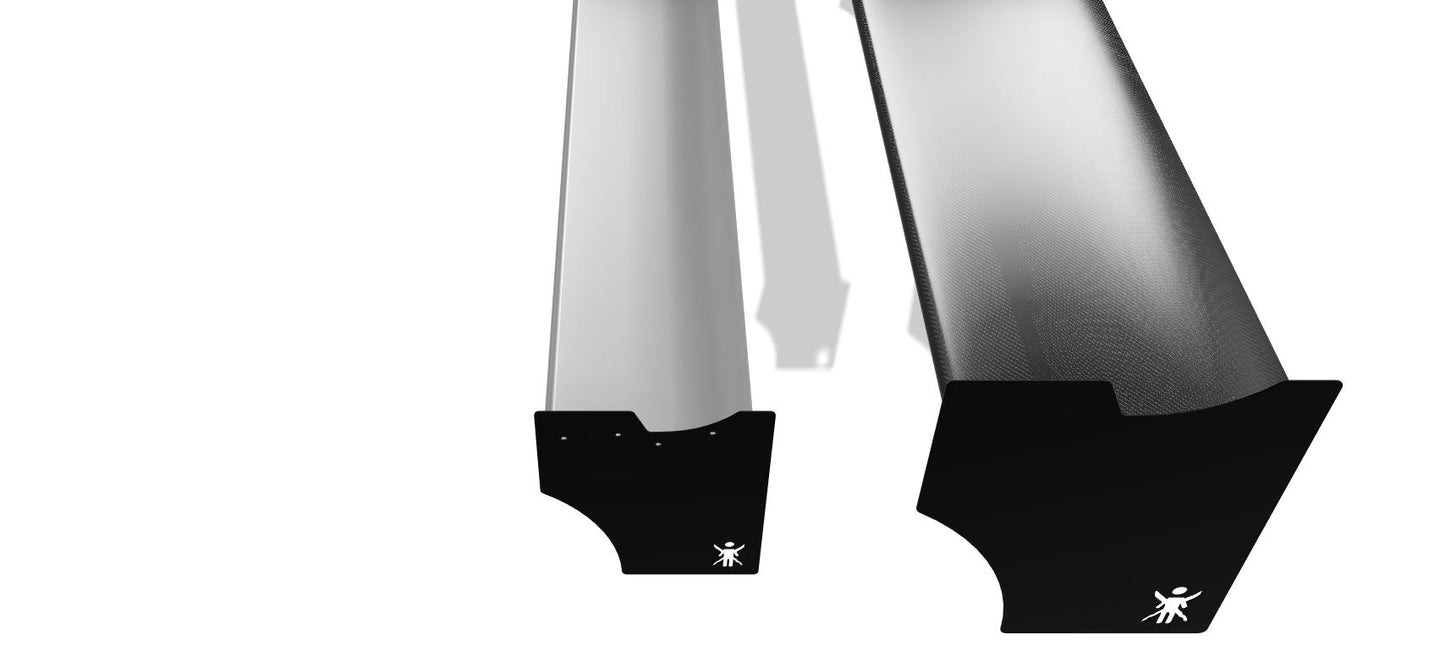

  • Two stacked, sleek black and white shelves with curved ends and trapezoidal side supports are depicted against a white background. The modern design of the Evolution 10 Big Wang kit by 9livesracing, featuring a small logo of a stick figure on the sides, mimics the graceful lines of aluminum wings, adding an element of sophistication.

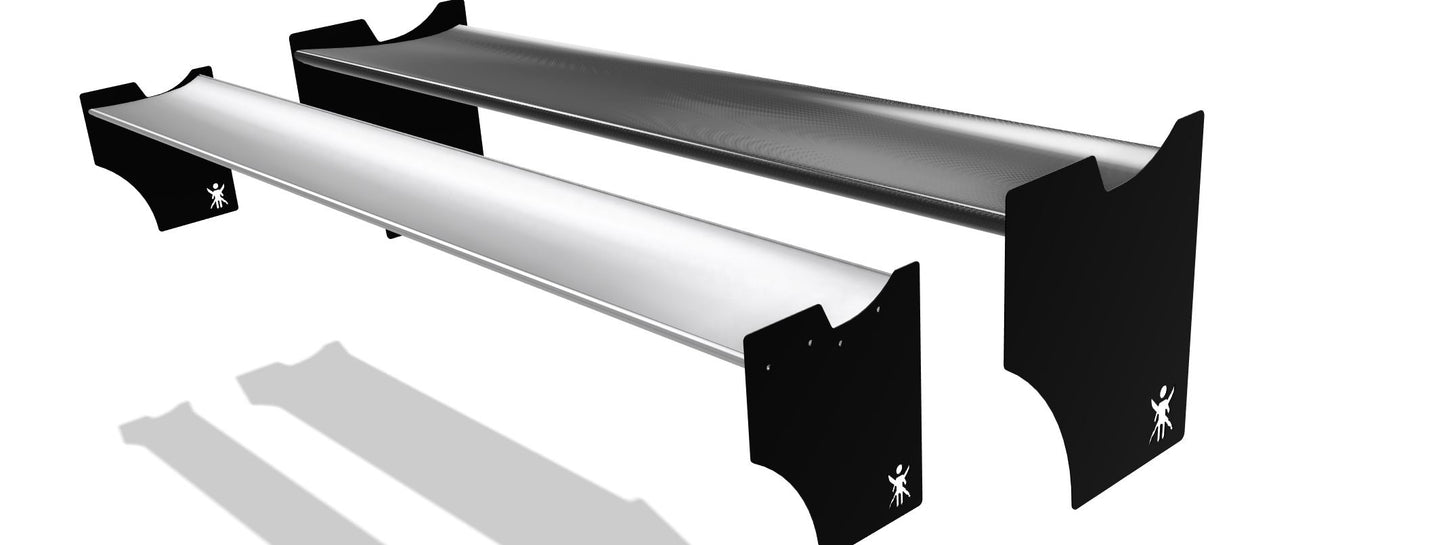

  • An image of the Evolution 10 Big Wang kit by 9livesracing, featuring two long, sleek, and aerodynamic aluminum wings in black and white. These components are part of a sophisticated design for racing vehicles. Each wing showcases a small logo of a stick figure on the bottom corners. The background is plain white.
  • Image of a black, sleek car wing with the text "Evolution 10 Big Wang kit" written next to it. Additionally, it includes the description "The lightest aluminum wing on the market." The wing, designed by 9livesracing for optimal down-force, is supported by two black side mounts.

Evolution 10 Big Wang kit

Regular price

$1,271.55
Wáng Material
Details

Looking for Wang Testers. if you would like to be the media darling. shoot us an email

Get that big Wang GT3 performance!  The Big Wang is here! These Airfoils can produce incredible levels of down-force without killing top speed. Exactly what racers are after. Extruded aluminum wings are developed, patented, and built for a prototype project. Nine Lives Racing Takes the raw material and makes them readily available to the public as a working part. Best wing in class. 15.2:1 Lift to drag ratio, nothing else comes close. A built-in gurney flap relief for down-force adjustments in seconds.

  • Light Aluminum construction.
    • 0.2lbs per inch
  • Gurney flap ready
  • Up to 15.2:1 Lift Drag ratio*
  • low drag = more top speed!
  • American made
  • Track Tested

What's included

  • Wing sized to your car
  • NLR “basic” End plates 10"x8"
  • Stainless Steel hardware



Upgrade end-plates To MEGA end-plates

  • 12"x10.75" huge end-plates
  • Increases downforce by 10%
  • DECREASES drag by 7%!!
  • NASA legal
  • AOA adjustment.





Warranty/ Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wáng skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wáng and Mega Wings are covered by the Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

*Open air testing numbers available at https://9livesracing.com/cfd-testing
