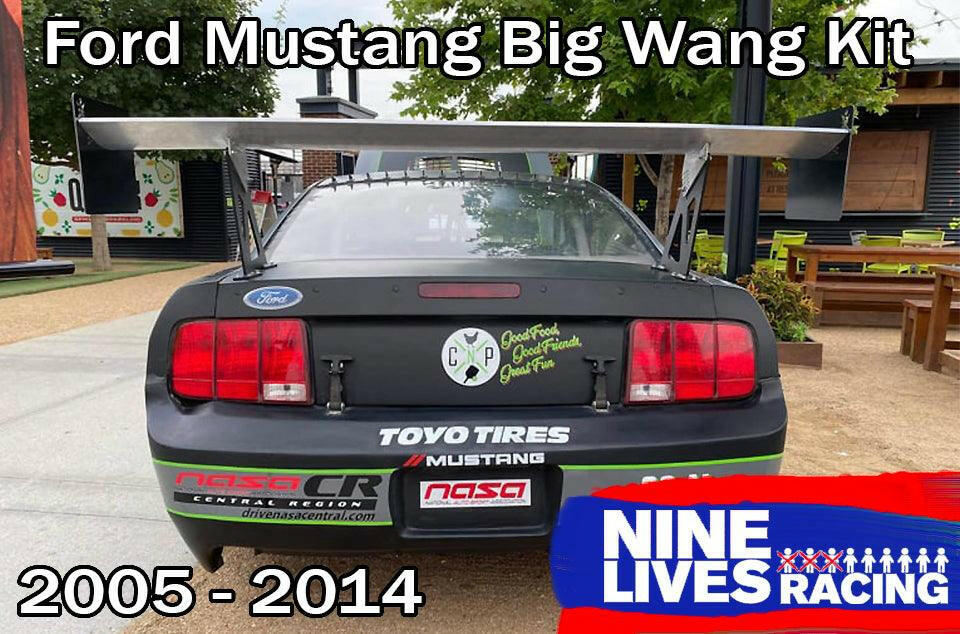

• A black Ford Mustang race car with a large rear wing, adorned with sponsor decals. The text at the top reads "Mustang Big Wang Kit '05-09 S197," and at the bottom, "2005 - 2014." The "9livesracing" logo is located at the bottom right corner, along with other sponsor names and logos on the car.

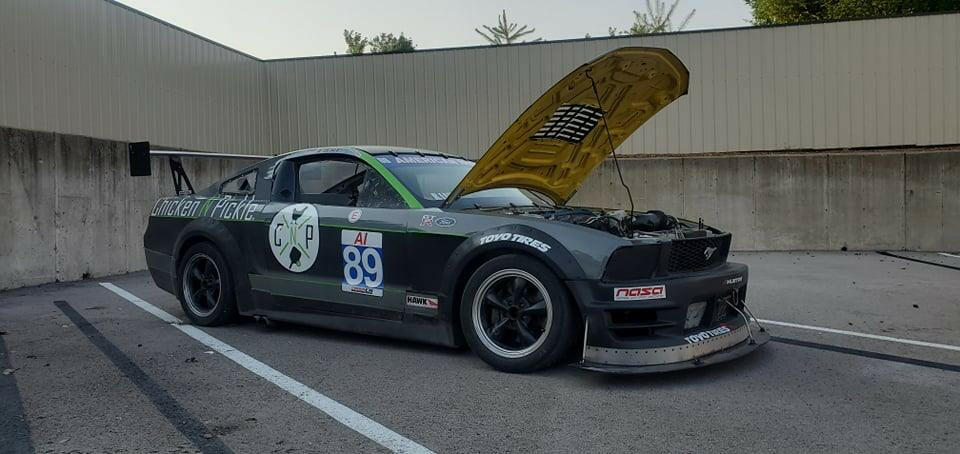

  • A black race car with the number 89 on its door sits parked with its hood open. The car boasts various sponsor logos and prominently features a Mustang Big Wang Kit '05-09 S197 from 9livesracing as its performance rear wing. It is parked in an outdoor lot with barriers and a metal building in the background.

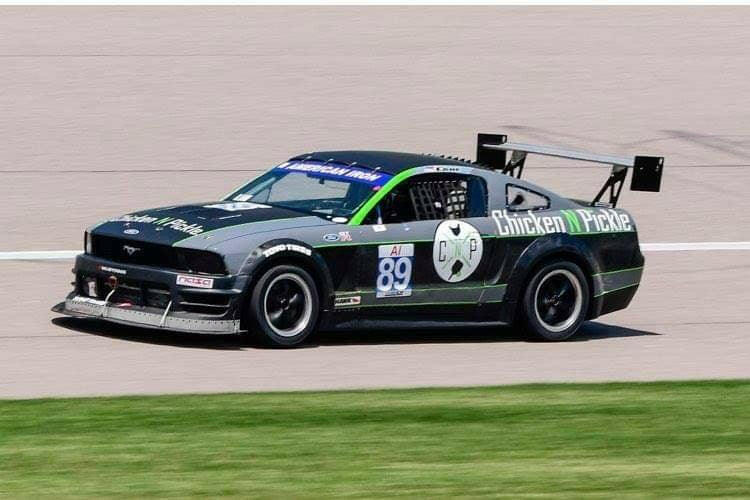

  • A black race car with the number 89 on the door, adorned with the "Chicken N Pickle" logo and graphics, speeds down a racetrack. The car is equipped with a 9livesracing Mustang Big Wang Kit '05-09 S197 aluminum wing for superior downforce adjustments and features various sponsor decals. Grass is visible in the foreground.

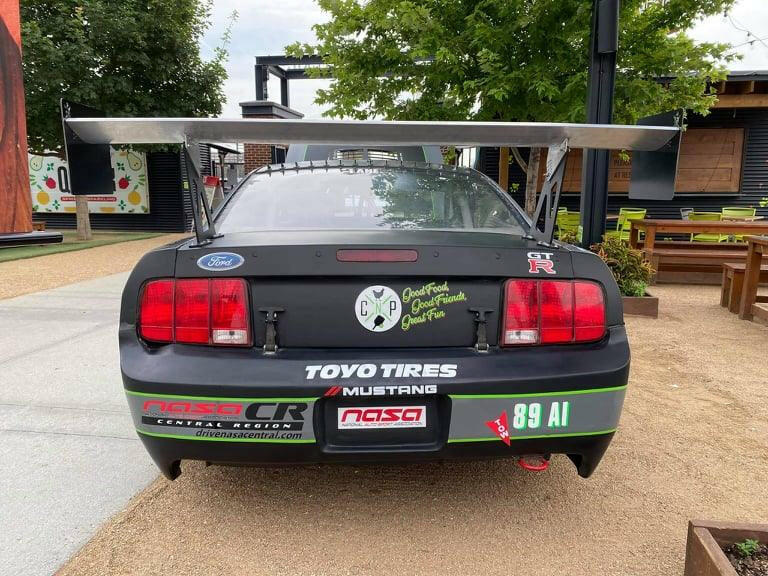

  • A black Ford Mustang race car adorned with decals such as "TOYO TIRES," "NASA," and "89 AI" is parked outdoors. Equipped with the 9livesracing Mustang Big Wang Kit '05-09 S197 for optimal downforce adjustments, the car also features a message on the trunk reading "Good Food Good Friends Good Times." The backdrop includes trees, a picnic area, and modern buildings.

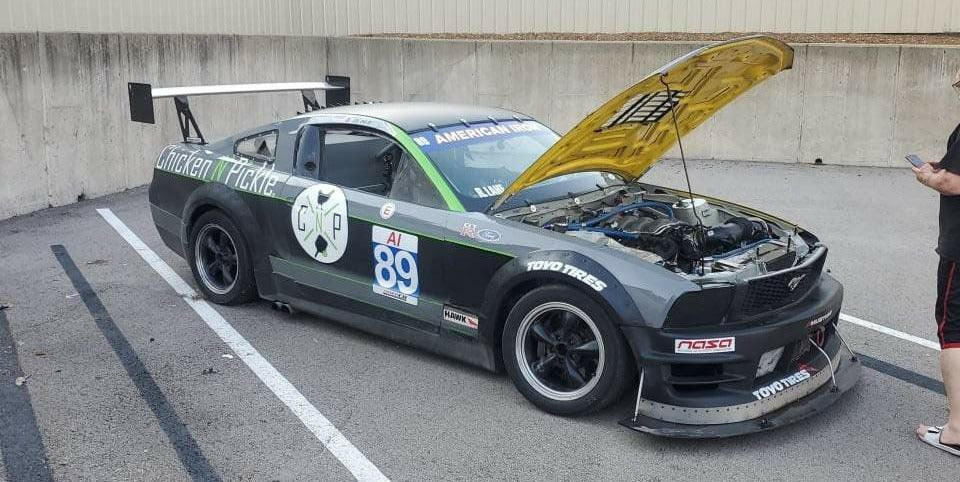

  • A race car with number 89 displayed on the side is parked in a lot, its hood open to reveal the engine. It boasts features like the Mustang Big Wang Kit '05-09 S197 by 9livesracing for optimal downforce adjustments, along with "American Iron" and various sponsor decals. Nearby, a person is holding a mobile phone.

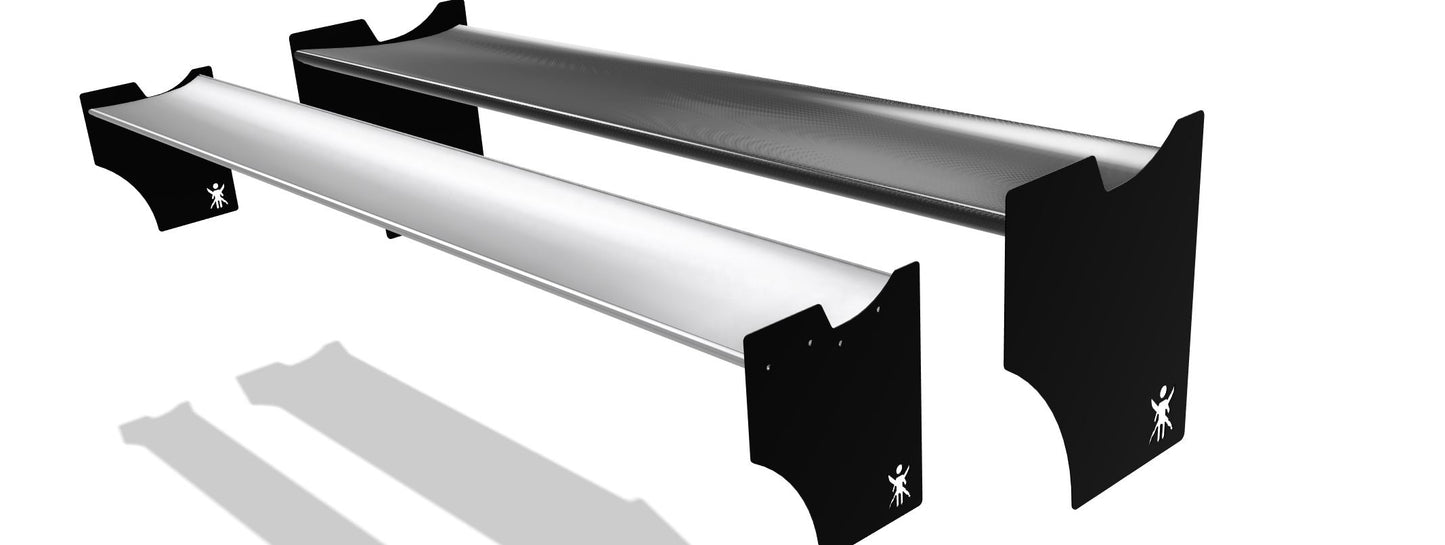

  • The Mustang Big Wang Kit '05-'09 S197 by 9livesracing inspired skateboard ramps are arranged in a side-by-side layout, mirroring the sleek design of high-performance accessories. Crafted from black and white materials, these ramps proudly display stick figure logos on their sides. Shadows cast by the ramps appear on the white background.

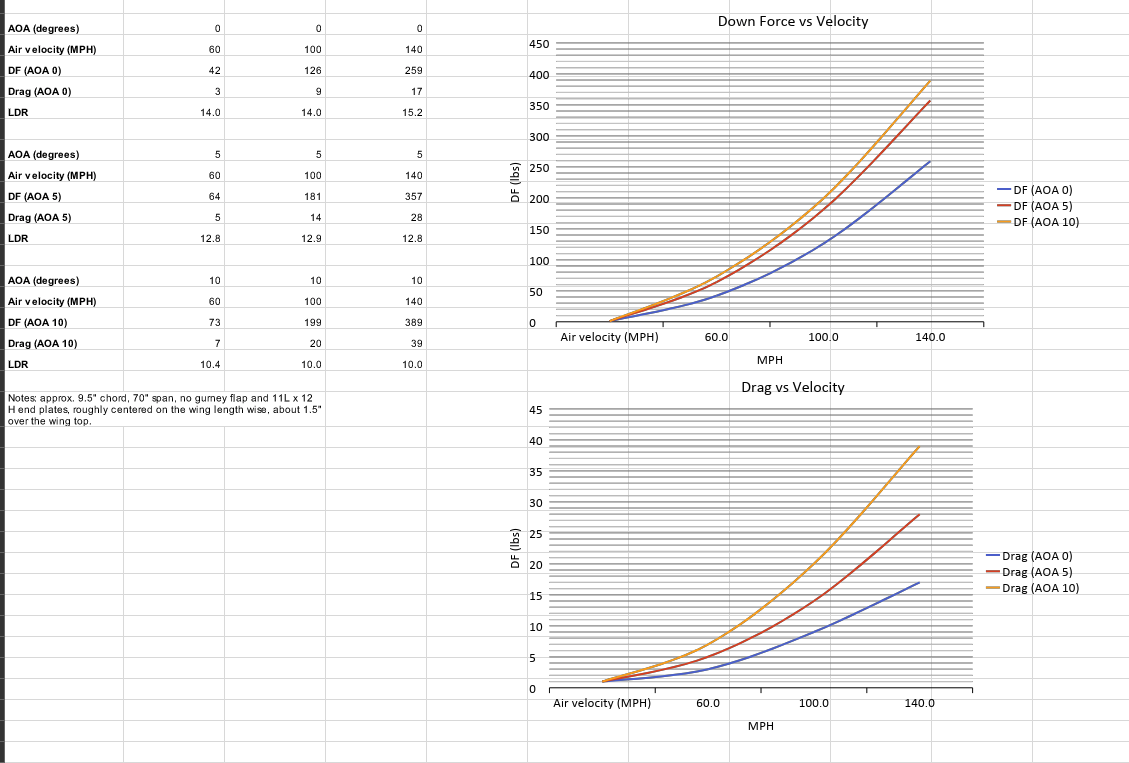

  • There is a table on the left displaying air velocity, angle of attack (AOA), lift-to-drag ratio (LDR), and drag data. On the right, there are two graphs titled "Downforce vs Velocity" and "Drag vs Velocity," illustrating how AOA angles (0, 5, 10 degrees) correlate with air velocity for downforce adjustments. Notes also mention the use of aluminum wings rated at 0.5. This data pertains to the Mustang Big Wang Kit '05-09 S197 from 9livesracing.
  • Two elongated, narrow black and white components with irregular shapes and a small human-like figure symbol at the bottom ends, set against a plain, white background. The components appear to be angled and in shadow, much like the aluminum wings of the Mustang Big Wang Kit '05-09 S197 from 9livesracing making downforce adjustments for optimal performance on the track.

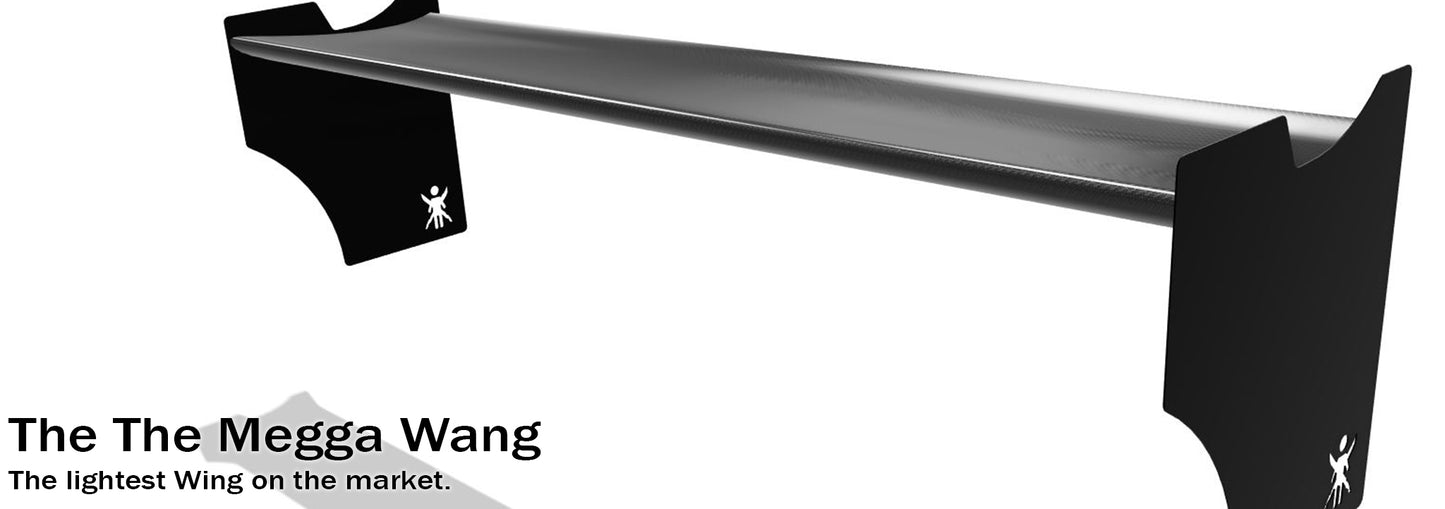

  • Image of a black Mustang Big Wang Kit '05-09 S197 with a sleek design and end plates, marketed with the text: "The lightest Wing on the market." This aluminum wing from 9livesracing features a small silhouette of a person lifting weights on the side plates, highlighting its impressive GT3 performance capabilities.

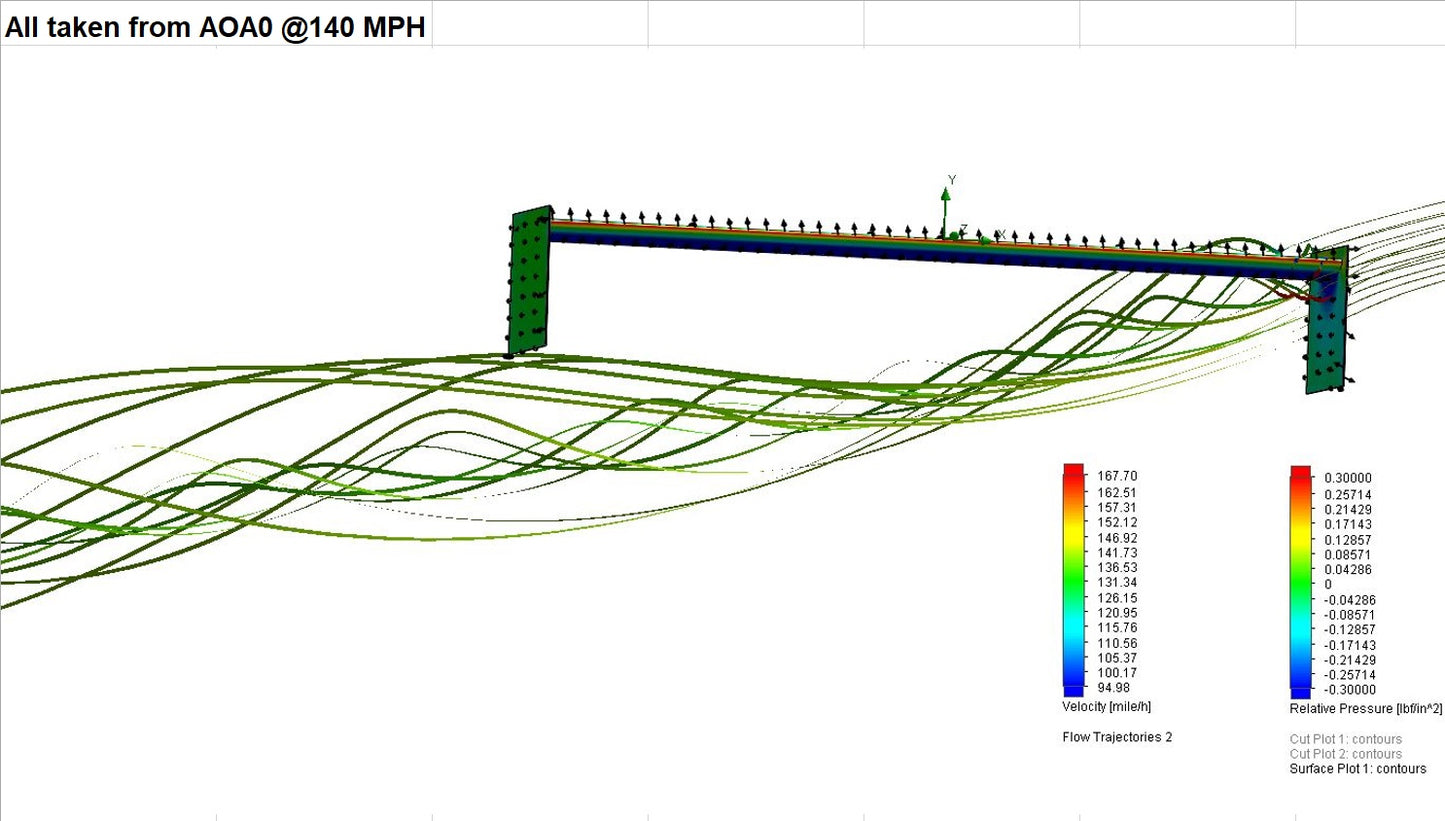

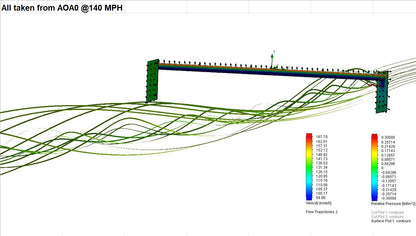

  • A CFD simulation image depicting airflow over a structure, with green streamlines indicating velocity and a color gradient legend displaying pressure values. Featuring aluminum wings, the velocity legend ranges from 10.15 to 19.31 m/s. The title reads "Data sourced from Mustang Big Wang Kit '05-09 S197 @140 MPH” by 9livesracing.

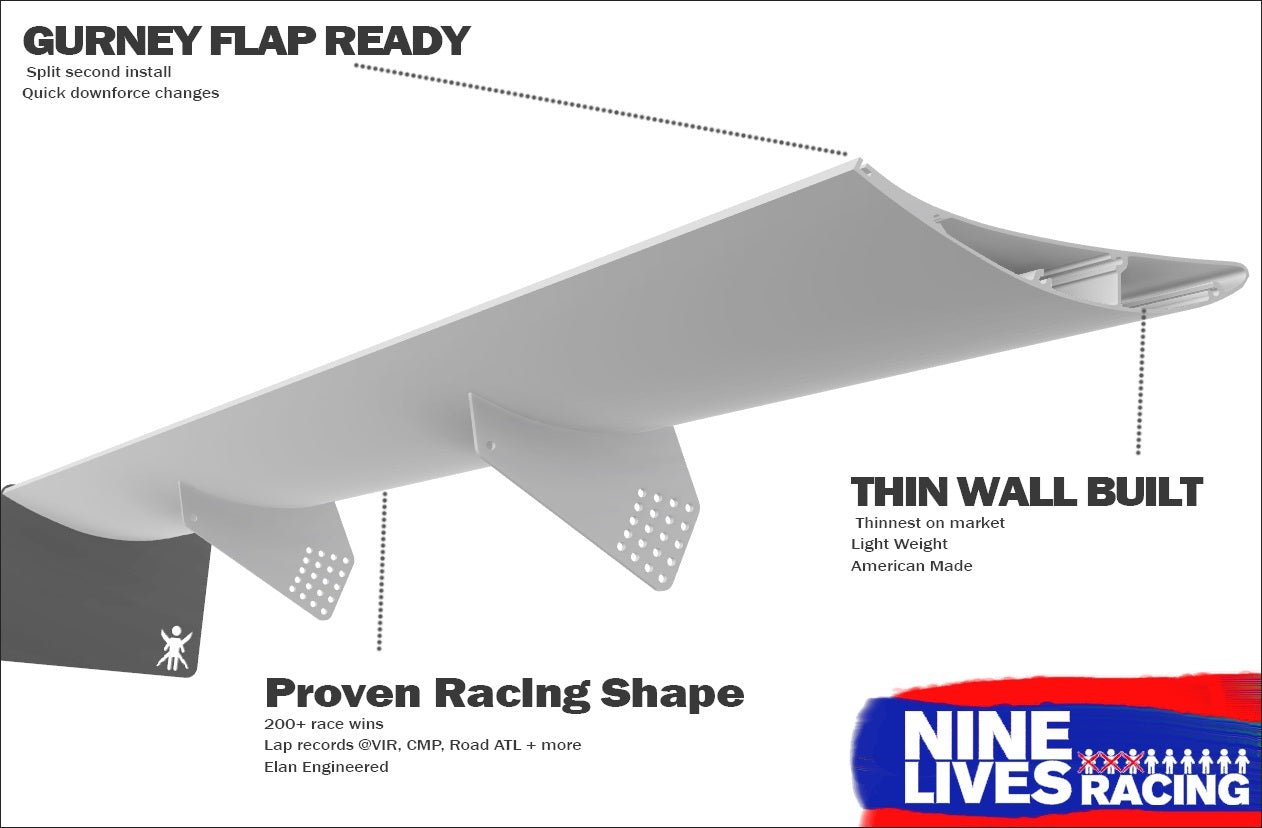

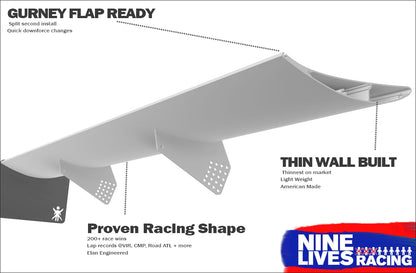

  • The Mustang Big Wang Kit '05-09 S197 by 9livesracing features a racing car wing with various annotations and labels showcasing its attributes. "Gurney Flap Ready" indicates quick downforce adjustments. Other highlights include "Thin Wall Built," "Proven Racing Shape," and the 9livesracing logo. Technical specs in smaller text enhance the aluminum wings designed for big Wang GT3 performance.

Mustang Big Wang Kit '05-09 S197

Regular price

$1,118.64
Wáng Material
Details

Get that big Wang GT3 performance!  The Big Wang is here! These Airfoils can produce incredible levels of down-force without killing top speed. Exactly what racers are after. Extruded aluminum wings are developed, patented, and built for a prototype project. Nine Lives Racing Takes the raw material and makes them readily available to the public as a working part. Best wing in class. 15.2:1 Lift to drag ratio, nothing else comes close. A built-in gurney flap relief for down-force adjustments in seconds.

  • Light Aluminum construction.
    • 0.2lbs per inch
  • Gurney flap ready
  • Up to 15.2:1 Lift Drag ratio*
  • low drag = more top speed!
  • American made
  • Track Tested

What's included

  • Wing sized to your car
  • NLR “basic” End plates 10"x8"
  • Stainless Steel hardware



Upgrade end-plates To MEGA end-plates

  • 12"x10.75" huge end-plates
  • Increases downforce by 10%
  • DECREASES drag by 7%!!
  • NASA legal
  • AOA adjustment.



Warranty/ Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wang skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wangs and Mega Wings are covered by Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

* Open air testing numbers available at https://9livesracing.com/cfd-testing
